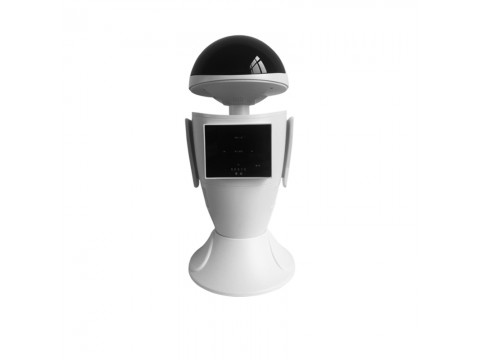

In-door intelligent mosquito trap BM101
Master Bai intelligent mosquito trap BM101
Product features: Compared with the traditional ones, the special light source of this product has stronger mosquito attracting ability and less harm to the human body; intelligent control and multi-functional.
Application areas: home, shopping malls, hotels, restaurants and other in-door areas.
specifications
BM101
Sizes:
∅164*348mm
Trapping devices
trap
mat
PC + ABS
case
w/p
According to
mosquito phototaxis characteristic, use special light source to attract, and
to enhance the effect by enlarging net in suction port. Suck the mosquitoes
by air negative pressure generated by high-speeding fan. Special designed
collecting box easy to clean.
Suction
devices
motor
Type
Energy
saving brushless DC motor, protection grade：IP67
voltage
DV12V
Rated power
3W
Fan blades
mat
Anti aging PC，protection grade：IP67
diameter
95mm
Attracting
light source
LED SMD，DC12V；2W/3W；wavelength320-600nm
Insect
collecting box
PC+ABS, sizes: ∅ 65*86
