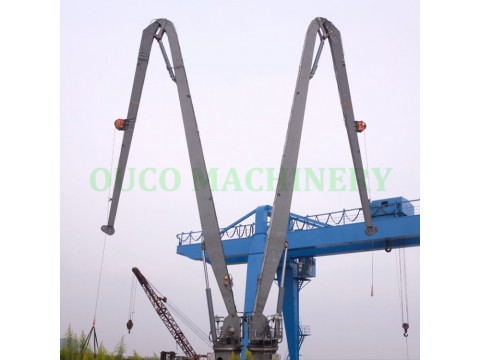

OUCO Marine/Offshore 1T30M knuckle boom crane is mainly used on the deck of bulk carrier or overload barge for handling a variety of cargo bulks.
It has several hoisting points to fit the demand of vessel usage, which are 1T30M, 25T10M,0.85T31M , makes the crane with long outreach to complete the lifting job.
Main Features And Advantages
1. Hydraulic type makes the crane maintain easily.
2. Flexibility by extending booms.
3. Smaller ones takes very limited space on the vessel/ship/shipyard.
4. Bigger ones can do heavy duty loads in several working conditions.
5. The innovative design of the knuckle boom crane allows workers to perform great number of logistic tasks. The function of these heavy duty.
6. machines is to load and unload heavy materials from one location to another.Due to its durable construction technologies and precision.
7. knuckle boom crane provides an extra solid hand to any workforce. With its great lifting power, payload space and maneuverability, knuckle boom crane successfully replaces manpower.
Technical Parameters
| SWL | 1T@30M&2.5T@15M |
| Working Radius | 4.2~30m |
| Hoisting Speed | 0~15m/min |
| Hoisting Height | 28.5m |
| Slewing Speed | ~0.6r/min |
| Slewing Angle | 360° |
| Luffing Time | ~120s |
| Dead Weight | 38t |
| Tirm | ≤2° |
| Heel | ≤5° |
| Motor Type | Y160K-4-H |
| Motor Power | 90KW |
| Motor Speed | 1780r/min |
| Power source | AC440V, 60Hz, 3P |
| Protect Class | IP56 |
| Insulate Class | F |
| Working Type | S1 |
