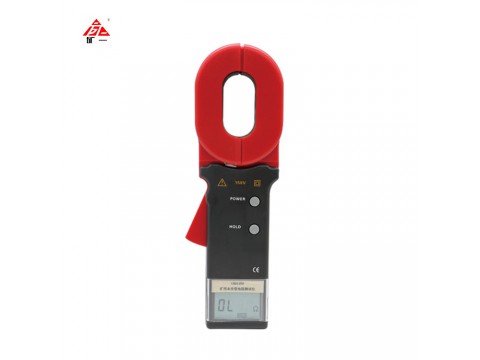

Mining Intrinsically Safe Resistance Tester

Model: CHD1200

Description: CHD1200 Mining Intrinsically Safe Resistance Tester

MA number: MFA150190

KA number: KFA150020

ExibI: 320150858

ExiaII: CMExC17.4383

Patent No. ZL 2015 2 0977177.7

Introduction:

1. Applicable for grounding resistance and circuit resistance measurement in mining, industrial park, electricity, telecom, meteorological, oilfield, architecture and  industrial motor equipment fields.

2. It can do measurement directly and no need to disconnect grounding wire or prepare auxiliary electrode.

3. Applicable for the combustible and explosive gas place.

4. Measured value is the comprehensive value of grounding body resistance and grounding wire resistance.

Technology parameters:

1. Measuring range, resolution and intrinsic error.

Measuring range	Resolution	Intrinsic error
0.1Ω～49.9Ω	0.1Ω	± (truth-value×1%+0.1Ω)
50.0Ω～99.5Ω	0.5Ω	± (truth-value×1.5%+0.5Ω)
100Ω～199Ω	1Ω	± (truth-value×2%+1Ω)
200Ω～395Ω	5Ω	± (truth-value×5%+5Ω)
400Ω～590Ω	10Ω	± (truth-value×10%+10Ω)
600Ω～1200Ω	20Ω	± (truth-value×20%+20Ω)

2. Resistance range: 0.01~1200Ω

3. Resistance resolution: 0.001Ω

4. Data storage: 99 sets

5. Sound-light alarm: yes. “AL” button to open or shut up.

6. Alarm critical value range: 1-199Ω

7. Power: 6V DC, alkaline dry cell

8. Working temperature and humidity: -20℃ to 55℃,10%RH to 90%RH.

9. LCD display size: 47mm×28.5mm

10. Jaw size: long jaw 65mm×32mm; circular jaw Φ32mm.

11. Jaw expanding size: long jaw 35mm; circular jaw 32mm.

12. Weight: long jaw 1160g; circular jaw 1120g (Battery included)

13. Dimension: long jaw: 285mm×85mm×56mm (L×W×H);

Circular jaw: 260mm×90mm×66mm (L×W×H).

14. Explosion-proof sign: Exia II BT3 Ga

15. Degree of protection: double insulation

16. External magnetic field <40A/m; external electric field <1V/m.

17. Single measurement time: 0.5s

18. Measuring frequency of resistance: >1 KHz.
