Mining Electromechanical Equipment Wireless Multi-Parameter Tester

Model: CDD11W

Description: CDD11W Mining Electromechanical Equipment Wireless Multi-Parameter Tester

MA: MFA170068

Patent No. ZL 2012 2 0543820.1

Introduction:

CDD11W is a comprehensive inspection instrument for mining electromechanical equipment. It can be used for inspection of hoist, fan, water pump, air compressor, aerial passenger device, slope car, belt conveyer, falling protector, trackless rubber-tired vehicle, electrical parameters and bolt and roadway section (optional). It’s high integration. Matching sensor has independent wireless structure and it’s connected to the host to exchange data. Product is reliable by using industrial grade wireless communication module.

Features:

1. Software cloud synchronization.

2. Easy to process, animation interaction.

3. Good design, wireless, networking transmission.

4. Modularization design, fulfill personalized requirement.

5. Vector graphics, stepless zooming.

6. Data review and data fast transmission.

Consist of:

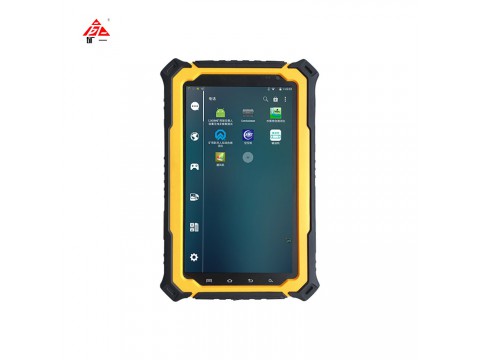

1. KJD3.7 mining intrinsic safety tablet (MAB160279)

2. GPD1.5W mining intrinsic safety wireless pressure sensor (MFB170068)

3. GPD8W mining intrinsic safety wireless pressure sensor (MFB170058)

4. GYD75W mining intrinsic safety wireless voltage converter (MFB170062)

5. GUJ20W mining intrinsic safety wireless laser ranging sensor (MFB170060)

6. GLD200W mining intrinsic safety wireless tension sensor (MFB170063)

7. GUD180W mining intrinsic safety wireless tilt sensor (MFB170059)

8. GLD20W mining intrinsic safety wireless flexible current sensor (MFB170064)

9. GSG16W mining intrinsic safety wireless speed sensor (MFB170053)

10. GUL13W mining intrinsic safety wireless displacement sensor (MFB170066)

11. GBC80W mining intrinsic safety wireless vibration sensor (MFB170067)

12. GCLW5/80W mining intrinsic safety wireless ultrasonic flow temperature sensor (MFB170056)

13. GWD250W mining intrinsic safety wireless temperature sensor (MFB170054)

14. GPD2W mining intrinsic safety wireless differential pressure sensor (MFB170065)

15. GFB30W mining intrinsic safety wireless wind speed sensor (MFB170055)

16. GFD30W mining intrinsic safety wireless wind speed sensor (MFB170057)

17. GD100W mining intrinsic safety wireless timer (MFB170061)

18. GWSP85/98/1200 mining intrinsic safety wireless temperature and humidity, atmospheric pressure sensor (MFB160127)

19. GPD60W mining intrinsic safety wireless pressure sensor (MFB160139)

20. YJAV2/250 mining flameproof and intrinsic safety current/voltage collector (MAB140814)

21. YJAV500/750 mining flameproof and intrinsic safety current/voltage collector (MAB140813)

22. CMC60W mining bolt wireless dynamometer (MFA170061)

23. PT100 temperature sensor

24. 145mm temperature sensor stainless drive pipe

25. 195mm temperature sensor stainless drive pipe

26. Special wind-cup bracket

27. Fixing device of people and vehicle speed sensor

28. Magnetic stand
