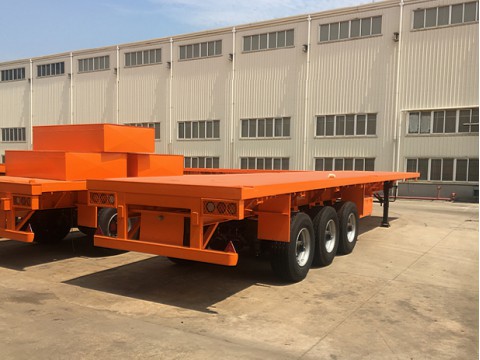

Versatile 40ft Flatbed Trailer, Double-axle Flatbed Semi Trailer, Tri-axle Flatbed Trailer with GVWR 46300kg or 57200kg, Capacity of 40 Ton or 50 Ton Is Perfect for Carrying 1x20 ft., 1x40 ft. or 2x20 ft. Containers or Other Items Packed in Pallets. Custom 2-Axle & 3-Axle 40ft Flatbed Trailer Is the Right Solution for Your Needs.
SPECIFICATION
40FT Flatbed semi trailers
Feature
Transporting 1X20 FT, 1X40 FT, or 2X20 FT container
Dimension(L*W*H)
12420*2480*1570mm
Main frame
Heavy duty and extra durability design adopting high tensible low carbon alloy steel Q345B and I beam welded by automotive arc-submerge process
Model
JS9380TJZP
JS9280TJZP
Axles
3
2
Payload(kgs)
50000
40000
Curb weight(kgs)
7200
6300
Kingpin
The world-famous JOST brand bolt-in/welded type 3.5”/2”
Landing gear
JOST brand two-speed manual operation 19”
Tire size
11.00R20, 11R22.5, 12R22.5, 315/80R22.5 and 385/65R22.5
Rim size
8.25*22.5, 9.00*22.5 and 11.75*22.5
Axle
Original BPW-12T/FUWA-13T
Suspension
Germany type with 12pcs of leafs spring/Fuwa brand with 8pcs of leaf springs/Airbag suspension
Brake system
Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber and 46L air tank
Electric system
One unit of 24V 7-pin ISO standard socket with brake light, turn light, reverse light, side light, fog light, reflector and one set of 6-pin standard cable
Container locks
12(for 1x20GP, 2X20GP and 1X40HQ)
Painting
S.A.2.5 standard sandblasting, two coats of anti-corrosion primes and one coat of finish painting
Accessory
One tool box and one set of standard tool
We can manufacture the trailers according to customers' designs and requirements.
