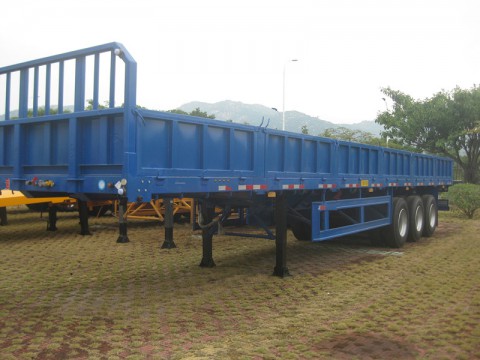

Justsun New Tri-axle Dropside Trailer, Drop Side Trailer for Sale. Our 40ft Tri-axle Payload 40 Ton Dropside Trailer with GVWR 48 Ton, Tare Weight 8000 kg (8 Ton) Is Designed for Your Individual Requirements. With Added Strength, Flatbed 3-axle Dropside Trailer with Superior Quality Can Endure Constant Opening & Closing Action.
SPECIFICATION
40FT Side Wall Semi Trailers
Feature
Carry 1X20 FT, 1X40 FT, or 2X20 FT container;
Carry Bulk cargo
Dimension(L*W*H)
12600*2500*2300mm
The Height of Wall
800mm
Mainframe
Heavy duty and extra durability design, made of high tensible low carbon alloy steel Q345B and I beam welded by automotive arc-submerge process
Model
JS9402TJZW
JS9400TJZW
Axles
3
2
Payload(kgs)
50000
40000
Curb weight(kgs)
8200
7300
Kingpin
The world-famous JOST brand bolt-in/welded type 3.5”/2”
Landing gear
JOST brand two-speed manual operation 19”
Tire size
11.00R20, 11R22.5, 12R22.5, 315/80R22.5 and 385/65R22.5
Rim size
8.25*22.5, 9.00*22.5 and 11.75*22.5
Axle
Original BPW-12T/FUWA-13T
Suspension
Germany type with 12pcs of leafs spring/Fuwa brand with 8pcs of leafs spring/Airbag suspension
Brake system
Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber and 46L air tank
Electric system
One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, fog light and reflector; one set of 6-pin standard cable
Container locks
12(for 1x20GP, 2X20GP and 1X40HQ)
Painting
S.A.2.5 standard sandblasting, two coats of anti-corrosion prime and one coat of finish painting
Accessory
One tool box and one set of standard tool
We can manufacture the trailers according to customers’ designs and requirements.
