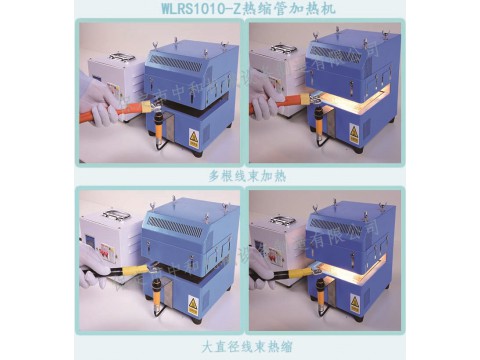

WLRS1010-Z desktop heat shrinkable tube heater, small size, light weight, can be placed on the worktable, suitable for processing a variety of wire harness, short wire harness, large diameter wire harness, extra-long wire harness, terminal wire harness, etc., 24 hours of continuous work, can set the heating time freely. It is an ideal heat shrinkage tube heating tool to replace the hot air gun.
Characteristic:
Equipment Composition
Heating System + Control System
Two heating control modes
1. Proximity of products, induction trigger, heating.
2.Circulating automatic start-stop heating mode.
The machine is heated on both sides with uniform heating.
Adjustable width of heating zone
The width of the heating zone can be adjusted by the user according to the size of the heat shrinkable tube, which can save energy and do no hurt the line.
Design of Heat Insulation in Heating Zone
The double design of heating zone shell is filled with insulation material, which can isolate the internal and external temperature, save energy and protect the working environment.
|
Classification |
Item |
Parameter |
|
Size |
Overall machine size（L×W×H） |
190mm×212mm×180mm |
|
Heating area（L*W*H） |
150 mm ×150 mm ×40mm |
|
|
Heating pipe |
Name |
Infrared radiation tube |
|
Number |
2~8 |
|
|
power |
200W*8 |
|
|
Power source |
Specification of power supply |
Single phase 220V+PE |
|
Overall machine power |
1700W |
|
|
Safety |
Safety grade |
PE |
|
weight |
Overall machine weight |
<4KG |
