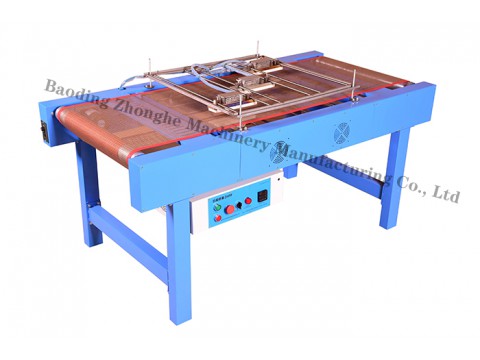

WLRS6560-2 Intelligent Double-sided Thermal Shrinkage Pipe Heater (Intelligent Digital Temperature Control, Independent Control System) is suitable for heating and shrinkage of heat shrinkage pipes in wire harness processing enterprises. It can adjust temperature according to production process requirements and shorten shrinkage time. It is suitable for any length of heat shrinkage pipes. It can work continuously for 24 hours without interruption, so that the heat of heat shrinkage pipes can be uniformly heated.
Characteristic:
Equipment Composition
Conveying System+Heating System+Cooling System+Control System
Design of Heat Insulation in Heating Zone
The double design of the shell in the heating zone can isolate the internal and external temperature, save energy and protect the working environment.
conveying system
Conveying speed is controlled by a speed regulating motor, which can smoothly adjust the speed from zero to fast, so that the heated wire harness passes through the heating zone for time adjustment.
Adjustable Heating Plate Height
Thermal shrinkage of multi-diameter products can be realized
Flexible Heating Zone Design
The use of double-sided heating and windless heating plate can save energy and effectively improve the working environment. Ceramic heating plate can adjust height quickly. In single-side, double-side, single-row and double-row heating switching, it can be adjusted between 3, 6, 9 and 12 heating boards to meet the requirements of different wire harness shrinkage.
Removable bracket
The bracket of the equipment can be disassembled freely, which increases the adaptability and mobility of the equipment.
Cooling system
The outlet is equipped with cooling fan and heat shrinkable tube after cooling and heating.
intelligent control system
Simple and easy to learn temperature control settings
Temperature control system adopts mature temperature control meter settings, simple and easy to learn.
|
Classification |
Item |
Parameter |
|
size |
Overall machine size（L*W*H） |
1800mm*952mm*902mm |
|
Power Control Box（L*W*H） |
195 mm *150 mm *140mm |
|
|
Heating area（L*W*H） |
720 mm *60mm（opional 80mm，120mm，160mm）*70mm |
|
|
heating plate |
Name of heating plate |
Ceramic heating plate |
|
Number of heating plates |
The standard matching is 6 (3,9,12 selected) |
|
|
Single Heating Plate Power |
1000W |
|
|
convey |
Material |
Teflon |
|
Speed |
0.5~5m/min |
|
|
Conveyor motor power |
40W（Stepless Speed Regulation） |
|
|
conveying width |
650mm |
|
|
Power supply |
Power demand |
220V |
|
Power |
13KW |
|
|
Security |
Safety grade |
PE earth wire |
