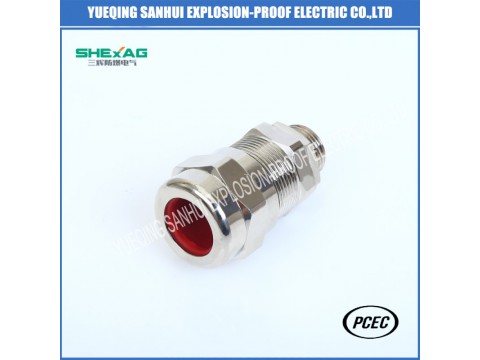

SHBDM-2 Industrial cable gland (Armored cable)
Specification
Materials:Brass,Stainless steel 304,316
Surface treatment:Nickel planted,Passivation
Sealing materials:Silicon rubber,Neoprene,Teflon,PA6
Explosion mark:Exd IIC Gb/Exe II Gb/Ex tD A21 IP68
Fireproof grade:V0(UL94)
Protection level:IP68 (screwed-on the cap)
Ambient temperature:Static from -60℃ to 100℃,short up to 120℃
Dynamic from -20℃ to 80℃,short up to 100℃ without halide.
Environment condition:Zone1,Zone2 IIA-IIC Explosive gas atmosphere,Strict21,22 inflammable dust environment,it is widely used in petroleum, chemical, warehouse, food, pharmaceutical, military and other electrical cable fixing and sealing.
|
Mode |
Entry thread size AG |
|
|
|
|
|
|
|
M |
NPT.G |
|
SHBDM-2-01o |
M20 |
1/2” |
|
SHBDM-2-01S |
M20 |
1/2” |
|
SHBDM-2-02 |
M25 |
3/4” |
|
SHBDM-2-03 |
M32 |
1” |
|
SHBDM-2-04 |
M40 |
1 1/4” |
|
SHBDM-2-05 |
M50 |
1 1/2” |
|
SHBDM-2-06 |
M63 |
2” |
|
SHBDM-2-07 |
M75 |
2 1/2” |
|
SHBDM-2-08 |
M85 |
3” |
