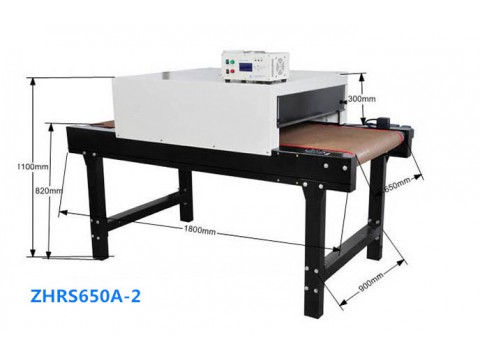

ZHRS650A-2，double side heat shrinkable tube heater with intelligent temperature adjustment (intelligent digital temperature control, use a liquid crystal screen to display the working state, independent control system) is suitable for heating shrinkage of large diameter heat shrinkable tubes and heating shrinkage of copper heat-shrinkable tube in control cabinet in wire harness processing enterprises, adjusting temperature according to the requirements of the production process, contraction time is short,can heat shrinkable tubes for any length, can work continuously for 24 hours without interruption, there is an omni-directional reflective thermal material in it, so that the heat shrink pipe is heated evenly.
Characteristics:
Equipment composition
Equipment bracket + conveying system + heating system + cooling system + control system
Heat insulation design of heating zone
The shell of the heating area is designed with double layer heat insulation, which makes the inside and outside temperature separate, that is to save energy and protect the working environment.
Omni-directional heat reflecting inner wall
The heat reflecting inner wall in the heating box ensures the uniform heating effect of the heating.
Adjustable import and export height
The conveyor belt heating box is completely closed, the input and output end of the heating box has a sliding door that can rise and fall, effectively prevent the heat source from leakage, protect the working environment, energy conservation, and increase the machine's ability to use one machine in many different jobs.
Adjustable infrared heating pipe height
The infrared heating tube can adjust the height quickly. Ensure repeatability of distance between light source and conveyor belt.
Detachable brackets
The bracket of the equipment can be disassembled freely, which increases the adaptability and mobility of the equipment.
Cooling system
The outlet is equipped with a cooling fan to cool the heated shrink tube.
Intelligent control system
LCD
Deviced friendly man-machine interface, menu operation of liquid crystal Chinese characters,simple and convenient manipulation,Real-time display of work status.
Open machine presupposition function
The machine can set the output temperature, the working time, etc.
Intelligent power regulation
According to the seted up temperature, the heating system intelligently recognizes the output power, and the output is stable.
Temperature control system
The power output is controlled by digital stepless mediation, the temperature is controlled, the output is stable, and the precision of temperature control is 2.
Parameter memory function
The power, the temperature, the working hours and other parameters of the hot air fan have memory function.
