Introduction

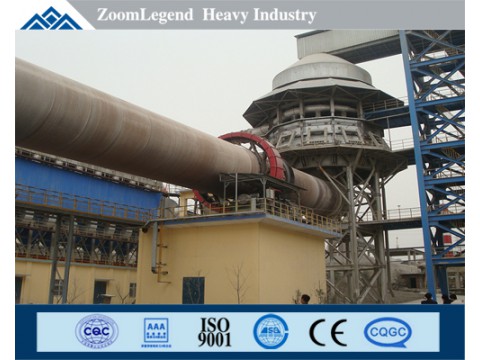

Cement rotary kiln is the main equipment of dry and wet cement clinker production line.Mainly used for calcining cement clinker, divided into dry cement kiln and wet cement kiln.Widely used in metallurgy, chemical industry, building refractory materials, environmental protection and other industries.
Characteristic
1. Structural advantages
Strong structure, smooth operation.
2. Wide application range
Besides calcining cement clinker, it is also used for calcining clay limestone and drying slag.In the production of refractory materials, rotary kilns are used to calcinate raw materials, so that their size is stable, strength is increased, and then processed into shape.
3. High environmental protection benefits.
The use of cement kiln incineration of hazardous waste, garbage, which not only make waste reduction, harmless, but also as a fuel waste utilization, saving coal powder, do waste resources.
Technical Parameter
|
Model |
Barrel diameter mm |
Barrel length mm |
Obliquity % |
Capacity t/h |
Rev (rmp) |
Electricmotor power kw |
Weight t |
|
YZ1225 |
1200 |
25000 |
4 |
3 |
0.53-5.25 |
22 |
34 |
|
YZ1632 |
1600 |
32000 |
4 |
3.5 |
0.53-5.25 |
15 |
46.82 |
|
YZ1828 |
1800 |
28000 |
4 |
4 |
0.28-2.84 |
30 |
59.39 |
|
YZ1845 |
1800 |
45000 |
4 |
4.5 |
0.28-2.84 |
30 |
80 |
|
YZ1636 |
1600 |
36000 |
4 |
1.2-1.9 |
0.26-2.61 |
22 |
51.023 |
|
YZ1939 |
1900 |
39000 |
4 |
1.6-3.4 |
0.31-2.82 |
37 |
70.704 |
|
YZ2044 |
2000 |
44000 |
3.5 |
2.4-4 |
0.22-2.26 |
37 |
97.135 |
|
YZ2245 |
2200 |
45000 |
3.5 |
3.2-5.3 |
0.23-2.25 |
45 |
125.46 |
|
YZ2550 |
2500 |
50000 |
3.5 |
6.2-7.4 |
0.68-1.45 |
55 |
179.60 |
|
YZ2555 |
2500 |
55000 |
3 |
7.3-9.8 |
0.79-2.38 |
55 |
191.20 |
|
YZ2820 |
2800 |
20000 |
4 |
15-18 |
0.8-1.45 |
75 |
186.37 |
