We supply galvanized and plastic coated barbed wires in coils, ribbons, loops.
Material:Q195/235
Surface treatment: Electro-galvanized, hot dipped galvanized, stainless steel, PVC / pe coated
Coating colors: A variety of colors including green, blue, yellow, orange, gray, is available.
Types: IOWA Barbed Wire, Razor Barbed Wire, Concertina Barbed Wire
Main Products Delivered
Traditional Barb Wires

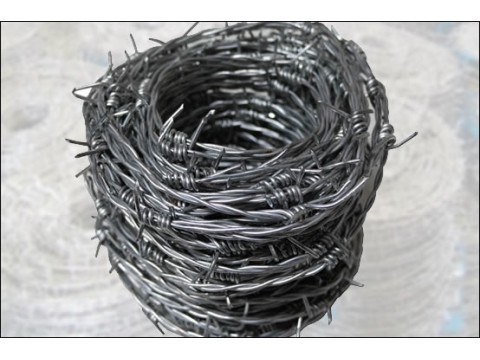

Galv. and PVC Coated Barbed Iron Wire in IOWA type, with 2 strands, 4 points. Barbs' distance 3-6 inches ( Tolerance +- 1/2" ).
Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.
Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.
Patterns
Traditional barbed wire patterns: Straight and reverse twisted ( left), double strand twisted (middle) and single strand barb wire (right).
Common Specifications
| Varieties | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
|
Electric Galvanized Barbed Wire; Hot-dip Galvanised Barbed Wire |
10# x 12# | 7.5 - 15 | 1.5 - 3 | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||
|
PVC / PE Coated Barbed Wire (powder coating thickness: 0.4mm to 1.0mm) |
before coating | after coating | 7.5 - 15 | 1.5 - 3 |
| 1.0mm - 3.5mm | 1.4mm - 4.0mm | |||
| BWG 11# - 20# | BWG 8# - 17# | |||
| SWG 11# - 20# | SWG 8# - 17# | |||
Applications
Border fences: Barbed wire can be used with fence posts to form a boundary fence.
Security fencing: Usually used with steel fencing panels as topping coil to form a safety barrier system. Or used with additional concertina barbed tapes for high secuirty fencing purpose.
Galvanized Barbed Wire
12x12, Barbs Spacing 3", strand: Double stranded
Finish: Hot dip heavy galv.
PVC Coated Border Fencing Rolls
Supplied in 30, 50m, 100m rolls
12 gauge barb wire, core: hot dipped galvanized wire, finish: Green pvc coating
Gal. Barbed Wire PVC Coated in Green, for Livestock Fencing
Barbed Wire with Tubular Posts: Double strand barbed wire, 12#, straight and reverse twisted, with 4 points, barbs spaced 7.5 cm. Uniformly coated with zinc hot dip galvanized in accordance with ASTM A-121 Class3 and also PVC coated in green.
PVC Coated Steel Fencing Syestem: Chain link Mesh with Traditional Barbed Wire and Concertina Razor Barbed Wire
14#x16# Barbed Tape, double twisted, electro-galvanised, green painted, fixed with round tube post with V arm supports.
Concertina barbed tape is added along chain link fencing system for high level border security fencing.
Galvanised PVC Coated Steel Razor Barbed ( Blade Profile) Wire / Ribbons / Coils
Blade razor wire coils or welded razor mesh panels.
Varieties
Bto-22 razor barbed wire
Pvc coated hot dipped galvanized razor wire ribbons
Green plastic coated razor wire barbed tape
SS 304 razor barbed wire
Hot Dipped Galvanized Razor Wire
Hot dipped or electric galvanized zinc pvc coated wire barbed, 450 mm coil diameter, 50m roll length, for grassland barrier fence.
CBT65 Concertina Razor Security Wire Mesh Welded Panels
Straight razor wire panels and mobile barrier gate
BTO-22 Razor Blade Barbed Wire
450mm and 500mm coil diameter razor blade barbed wire -BTO-22
High Tensile and High Security Fencing Concertina Barbed Tape (CBT and BTO )
Security Fence- Plastic coated
Barb type: Concertina
Materials: Hot dipped zinc coated; stainless steel 304 and 316; pvc coated galv.
Hot dipped galvanized 30” coil barbed tape concertina (BTC)
Spirals Per Coil: 56
Row of Clips: 3
Length per Coil: 50’
Core wire: 2.4 mm dia.
