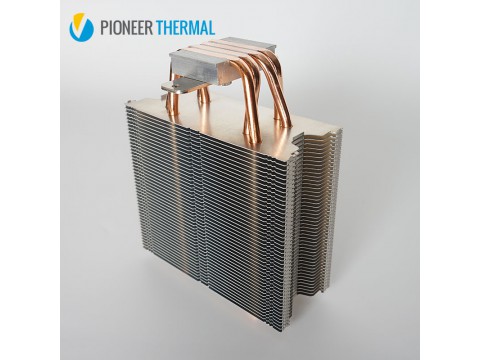

A custom stamped fin heatsink is made from sheets of aluminum or copper, where the metal is stamped into a particular configuration based on the intended application. For maximum design flexibility, fins can be stamped into a broad range of geometries and thicknesses. A stamped Fin custom heatsink is a useful approach for medium to high volume production.
|
Place of Origin |
Dongguan China |
Material |
Aluminum/Copper |
|
Shape |
Square |
Material & Temper |
Alloy 6063-T5/6061-T6/CU1100 |
|
Model number |
ST-7 Stacked fin |
Process |
Stamping fin |
|
Item |
Heatsinks |
Fin thickness |
0.25 --2 mm |
|
Finish |
Customized |
Certificate |
ISO9001,ISO14001 |
|
Extra process |
Heatpipes soldering |
size |
Customized |
|
Application |
CPU cooler |
OEM |
Yes |
|
Application field |
Telecommunication, UPS, inverters, controllers, wind power converters, and LED lighting |
||
Stacked heat sinks are formed by using a high pressure to press single fins, multiple fins, and single extrusions together into a stacked heat sink. This type of stacked fin heats which are formed by press-fit approach can realize a cooling structure that has both top and bottom base plates for mounting power devices.
Stacked heat sinks have advantages such as increasing cooling area while forming a closed passage at the same time so as to achieve higher thermal performance, no restriction on it volume, higher strength, lower manufacturing cost, easier installation and maintenance, longer service life, etc. Via our technical innovations,
Pioneer Thermal have 15 years of experience in Custom heat sinks and stamping production .Our focus has always been to provide superior customer service in the high quality cost-effective custom heat sink area. Any custom heatsinks and standard heatsinks demand, please contact Pioneer Thermal. We'll reply you within 12 hours.
