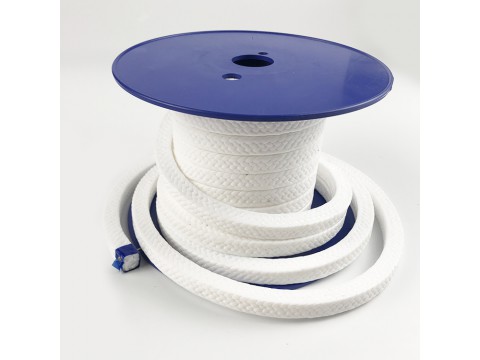

Non Asbestos PTFE Packing
The packing is made of white non asbestos fiber cords impregnated with PTFE dispersion. (Addition lubricant is operational.) It is soft in texture and suitable as the sealing of pumps for liquidated chemicals. However, packing impregnated with lubricants is reco-mended for use with reciprocating pumps or for the sealing in places where linear velocity is up to 10m/s.
Construction: Asbestos free Packing with PTFE & oil impregnation,Treated with PTFE & a special lubricant, without etching.
Application: Static and dynamic sealing -- Especially suitable for a wide range of applications for large rotary pumps in the medium pressure range.
|
Max temperature
|
260°C.
|
|
Max pressure
|
100Bar
|
|
Density
|
1.4g/cm3
|
|
PH
|
2~13
|
|
Size
|
From 6 x 6 mm to 50 x 50mm
|
|
Packaging
|
In coils of 5 or 10 kg, other weight on request; as precut length
|
