Product description

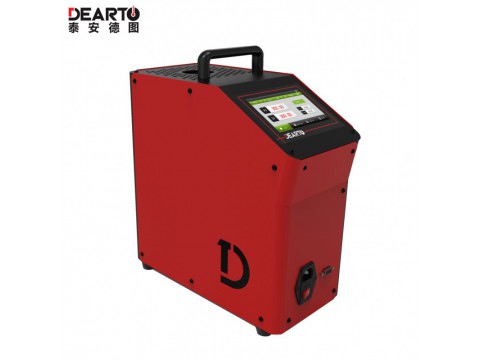

DTG series portable intelligent dry body furnace, simple operation, light and easy to carry, accurate temperature control, suitable for laboratory and industrial field temperature calibration / metering; its calibration temperature range can be from -30 ° C to 1200 ° C, the temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. Technologies such as temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load capacity and hysteresis are all at the leading level in China. Widely used in machinery, shipbuilding, chemicals, food, electricity, pharmaceuticals and other industries.
Product features：
n Accurate temperature control and uniform temperature field
n Beautiful, portable and lightweight, convenient for on-site verification.
n Touch screen operation, one temperature rise, automatic temperature control is convenient to use.
n Multi-stage temperature control, rapid temperature rise, zero overshoot, fast and stable
n Multi-point calibration interpolation calibration technology for more accurate temperature control
n RS-232 interface for data export
n Temperature curve, volatility, deviation synchronous display, intuitive reading
Product Paramenters
Model
DTG-300
DTG-450
DTG-660
Temperature range
50℃~300℃
50℃~450℃
50℃~660℃
Control method
Touch screen
Touch screen
Touch screen
Display resolution
0.01℃
0.01℃
0.01℃
Standard soaking block insertion aperture
Φ6、Φ6、Φ8、Φ8、Φ10、Φ12
Horizontal temperature field
≤±0.3℃
≤±0.3℃
≤±0.3℃
Vertical temperature field
Within 30mm from the bottom of the well ≤1.0 ℃
Within 30mm from the bottom of the well ≤1.0 ℃
Within 30mm from the bottom of the well ≤1.0 ℃
Well depth (mm)
170mm
Dimensions (mm)
310*165*360
Power
800W
800W
1200W
Power supply
220V/50Hz
When ordering, please indicate the insertion depth of the inspected sensor and the outer diameter of the inspected sensor (customization support)
