Product description

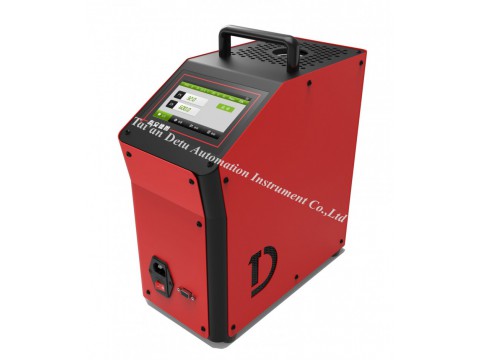

DTG series portable intelligent dry body furnace, simple operation, light and easy to carry, accurate temperature control, suitable for laboratory and industrial field temperature calibration / metering; its calibration temperature range can be from -30 ° C to 1200 ° C, the temperature block uses high thermal conductivity Rate alloy material to ensure uniform and stable internal temperature field. Technologies such as temperature control accuracy, horizontal temperature field, vertical temperature field, stability, load capacity and hysteresis are all at the leading level in China. Widely used in machinery, shipbuilding, chemicals, food, electricity, pharmaceuticals and other industries.
Product features：
n Accurate temperature control and uniform temperature field
n Beautiful, portable and lightweight, convenient for on-site verification.
n Touch screen operation, one temperature rise, automatic temperature control is convenient to use.
n Multi-stage temperature control, rapid temperature rise, zero overshoot, fast and stable
n Multi-point calibration interpolation calibration technology for more accurate temperature control
n RS-232 interface for data export
n Temperature curve, volatility, deviation synchronous display, intuitive reading
Technical indicators：
High temperature portable intelligent dry body furnace
Type
DTG-800
DTG-1000
DTG-1200
temperature range
300℃～800℃
300℃～1000℃
300℃～1200℃
Heat source
Heating
Heating
Heating
Accuracy
≤±1.2
≤±1.2
≤±1.2
Display resolution
0.01℃
0.01℃
0.01℃
Horizontal temperature field
≤±0.5℃
≤0.5℃
≤±0.5℃
Vertical temperature field
Within 40mm up from the bottom of the well≤1.0℃
Deep well（mm）
200㎜
200㎜
200㎜
Standard hole diameter （mm）
φ6、φ6、φ8、φ8、φ10、φ12
When ordering, please indicate the depth of the inserted sensor and the outer diameter of the tested sensor (support customization)
Dimensions（mm）
310×165×360
310×165×360
310×165×360
P
1800W
1800W
1800W
Power
220V/50Hz
