Description:

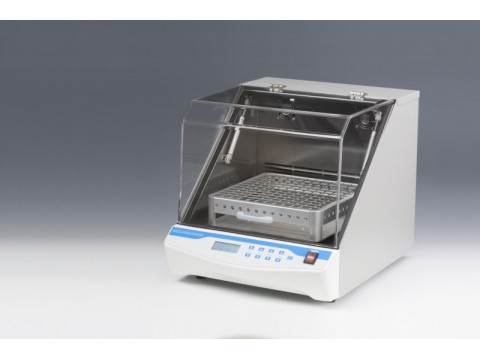

Orbital Shaker-Incubator is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program. Seven interchangeable platforms allow it mix and culture samples in flask, petri dish, tubes, Elisa plates, and etc. Built–in microprocessor thermo controller provides constant temperature control in the incubator chamber. It is extremely easy to operate, with very straightforward setup of temperature, speed and time.
Parameters:
|
Type Parameter |
TOS30 |
|
Temperature setting range |
0°C ~60°C |
|
Temperature control range |
RT.+5°C ~60°C |
|
Time range |
1min ~ 99h59min/∞ |
|
Temp. accuracy |
≤±0.5°C(@37°C) |
|
Display accuracy |
0.1°C |
|
Temp. uniformity |
≤±0.5°C(@37°C) |
|
Shaking range |
50~250rpm |
|
Heating time |
≤20min(from 25°C to 60°C) |
|
Orbit |
20mm |
|
Platform dimension |
350x350mm |
|
Internal chamber height |
325mm |
|
Load capacity |
10.0kg |
|
Auto resume to run |
Yes |
|
Power |
600W |
|
Voltage |
AC220V or AC110V/50-60HZ |
|
Fuse |
250V 3A Ф5×20 |
|
Dimension(mm) |
632x502x512 |
|
Weight(kg) |
41 |
Optional Platforms
|
Type |
Description |
|
TOS30-T1 |
Platform with clamps for 9×250ml conical flask |
|
TOS30-T2 |
Platform with clamps for 25×100ml conical flask |
|
TOS30-T3 |
Flat platform for 16pcs petri dishes |
|
TOS30-T4 |
Platform with spring holder |
