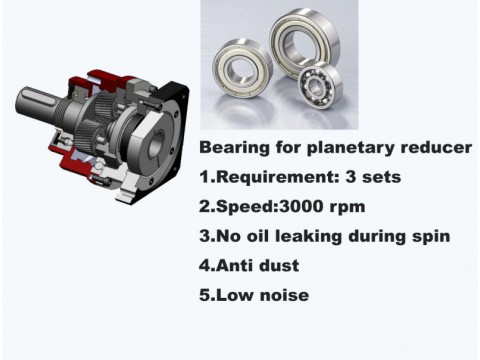

Planetary reducer bearing 6202 2RS CO HG04 (-50~150℃）
Click image to view original image
Price: 0.75USD/
Min.Order: 500
Supply
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: 2021-02-08 [Expired]
Updated on: 2020-02-09 18:23
Hits: 26749
Company Detail


Details



Technical Parameter

Axial clearance  C3 Max Speed 20,000 rpm
Bore diameter 15mm Operating temperature  -50℃-150℃
Outer diameter 35mm Dynamic load rating 7.640KN
Outer ring width 11mm Static load rating 3.720KN
Inner ring width 11mm Inner ring material GCr15
Minimum assembly chamfer 0.6mm Outer ring material GCr15
Net weight 0.046kg Steel ball material GCr15
Packing industrial package Retainer material SPCC
Packing number 500pcs Seal ring material NBR
