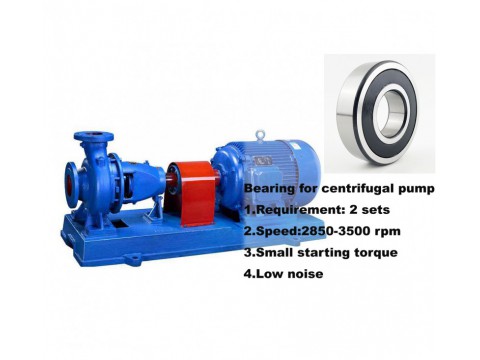

Bearing for Centrifugal pump 6201 2RZ C0 P5 HG24（-35~180℃）
Click image to view original image
Price: Negotiable
Min.Order: 500
Supply
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: 2021-02-08 [Expired]
Updated on: 2020-02-09 18:23
Hits: 30737
Company Detail


Details



Technical Parameter
Axial clearance  C0 Max Speed 23,000 rpm
Bore diameter 12mm Operating temperature  -35℃-180℃
Outer diameter 32mm Dynamic load rating 7.28KN
Outer ring width 10mm Static load rating 3.1KN
Inner ring width 10mm Inner ring material GCr15
Minimum assembly chamfer 0.6mm Outer ring material GCr15
Net weight 0.036kg Steel ball material GCr15
Packing industrial package Retainer material SPCC
Packing number 500pcs Seal ring material NBR
