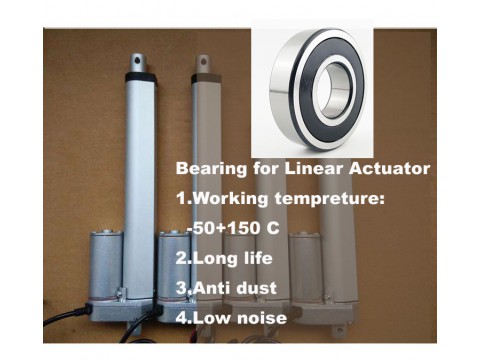

Bearing for Linear Actuator 6006 ZZ C0 P5 HG03（-40~180℃）
Click image to view original image
Price: Negotiable
Min.Order: 200
Supply
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: 2021-02-08 [Expired]
Updated on: 2020-02-09 18:23
Hits: 24667
Company Detail


Details







Technical Parameter
Axial clearance  C0 Max Speed 13,000 rpm
Bore diameter 30mm Operating temperature  -40℃-180℃
Outer diameter 55mm Dynamic load rating 13.23KN
Outer ring width 13mm Static load rating 8.3KN
Inner ring width 13mm Inner ring material GCr15
Minimum assembly chamfer 1mm Outer ring material GCr15
Net weight 0.114kg Steel ball material GCr15
Packing industrial package Retainer material SPCC
Packing number 200pcs Seal ring material SPCC
