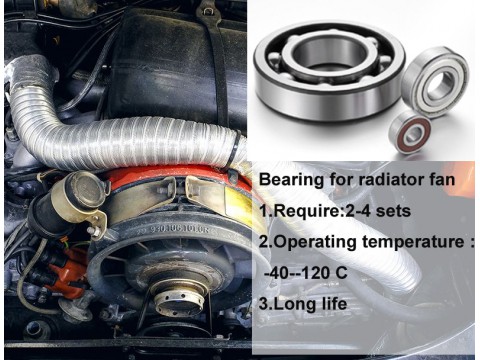

Bearing for radiator fan 609 ZZ MC5 HG08 grease -40~+200℃
Click image to view original image
Price: Negotiable
Min.Order: 1000
Supply
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2020-02-09 18:23
Hits: 42062
Enquiry
Company Detail


Details







Technical Parameter
Axial clearance  MC5 Max Speed 31,000 rpm
Bore diameter 9mm Operating temperature  -40℃-200℃
Outer diameter 24mm Dynamic load rating 3.90KN
Outer ring width 7mm Static load rating 1.66KN
Inner ring width 7mm Inner ring material GCr15
Minimum assembly chamfer 0.3mm Outer ring material GCr15
Net weight 0.0147kg Steel ball material GCr15
Packing industrial package Retainer material SPCC
Packing number 1000pcs Seal ring material SPCC
