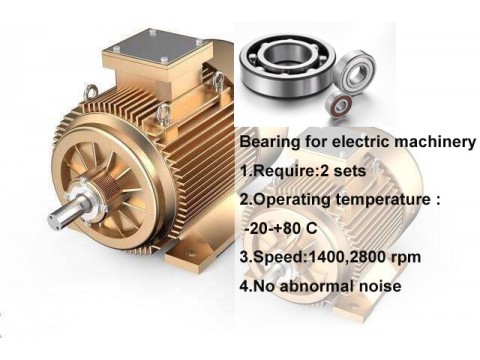

Bearing for Electric machinery 6204 2RZ C0 P5 HG24（-35~180℃）
Click image to view original image
Price: Negotiable
Min.Order: 250
Supply
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2020-02-09 18:23
Hits: 41931
Enquiry
Company Detail


Details







Technical Parameter
Axial clearance  C0 Max Speed 16,000 rpm
Bore diameter 20mm Operating temperature  -35℃～180℃
Outer diameter 47mm Dynamic load rating 12.84KN
Outer ring width 14mm Static load rating 6.65KN
Inner ring width 14mm Inner ring material GCr15
Minimum assembly chamfer 1mm Outer ring material GCr15
Net weight 0.107kg Steel ball material GCr15
Packing industrial package Retainer material SPCC
Packing number 250pcs Seal ring material NBR
