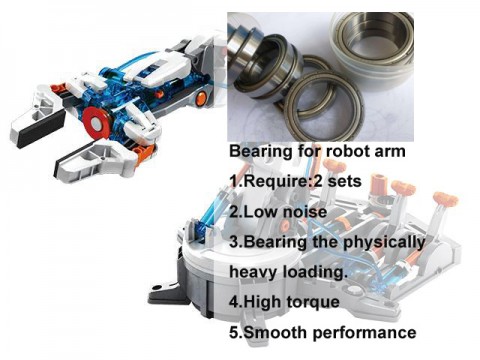

Bearings for mechanical arm robot arm 6806 2RS CM HG04 grease -50~+150℃
Click image to view original image
Price: Negotiable
Min.Order: 500
Supply
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2020-02-09 18:23
Hits: 43811
Enquiry
Company Detail


Details







Technical Parameter
Axial clearance  CM Max Speed 16,000 rpm
Bore diameter 30mm Operating temperature  -50℃～150℃
Outer diameter 42mm Dynamic load rating 4.7KN
Outer ring width 7mm Static load rating 3.62KN
Inner ring width 7mm Inner ring material GCr15
Minimum assembly chamfer 0.03mm Outer ring material GCr15
Net weight 0.025kg Steel ball material GCr15
Packing industrial package Retainer material SPCC
Packing number 500pcs Seal ring material NBR
