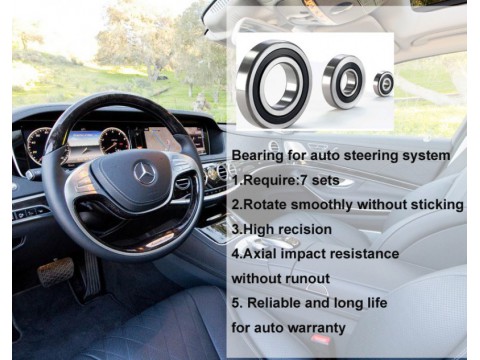

Bearing for auto steering system 6001ZZ P5 CM HG03 grease(-40~180℃）
Click image to view original image
Price: Negotiable
Min.Order: 1000
Supply
Delivery: Shipment within 30 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2020-02-09 18:23
Hits: 50444
Enquiry
Company Detail


Details







Technical Parameter
Axial clearance  CM Max Speed 33,000 rpm
Bore diameter 12mm Operating temperature  -40℃～180℃
Outer diameter 28mm Dynamic load rating 5.4KN
Outer ring width 8mm Static load rating 2.36KN
Inner ring width 8mm Inner ring material GCr15
Minimum assembly chamfer 0.3mm Outer ring material GCr15
Net weight 0.0206kg Steel ball material GCr15
Packing industrial package Retainer material SPCC
Packing number 1000pcs Seal ring material SPCC
