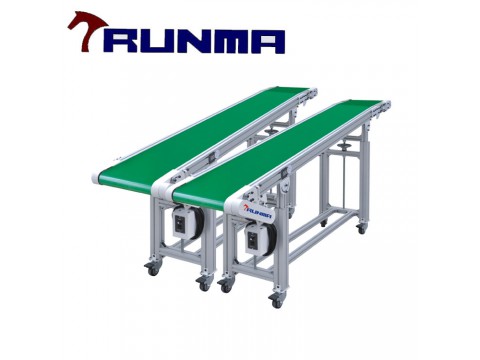

Assembly Line Belt Conveyor System Supplier Offers Custom PVC Belt Conveyor Systems for Assembly Line, Manufacturing Process, Aluminum Alloy frame, Length 600-5500mm, Width 200-600mm, Anti-static.
- A super-strong structure makes it long-wearing and not deformed.
- Convenient to use -- The height of both sides can be adjusted easily by a hand shaft.
- 4 wheels, convenient to move
- 4 fixed feet are foldable, which saves space.
- Adjustable speed, easy to use
- With standard robot connector which can be connected quickly
Model
RNA; RNB
Belt width (mm)
200, 300, 400, 500, 600
Conveyor length (mm)
1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000
Plane length (mm)
300 (W≤300, L≤200), 500 (W≥400, L≤250),700 (W≥600, L≤300)
Low-end height (mm)
700-1000
High-end height (mm)
1000-1600
Max load (kg)
25
Leather belt
PVC, THK 2mm, green, -10℃-80℃, anti-static, wear-resistant, oil-proof
Conveyor speed (m/min)
max: 15
Power supply
single phase AC220±10V 50/60HZ
Power consumption (KVA)
0.2
