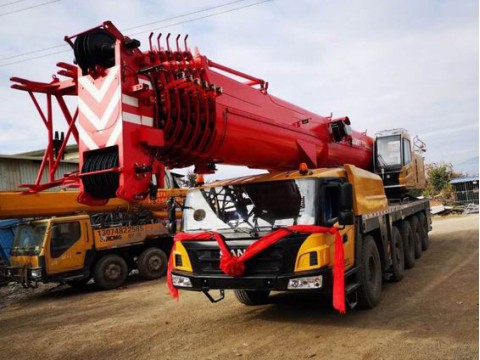

China Crane Truck Provides Supplies New Crane Truck, Max Total Rated Lifting Capacity 16 Ton, Max Speed 95KM/H, Dimension 12000mm x 2500mm x 3480mm.
Overall Dimension: 12000x2500x3480mm.
Total Weight: 24 Ton.
Load of the Front Axle: 24 Ton.
Load of the Rear Axle: 17.6 Ton.
Engine Maximum Power: 192/2200 kW/rpm.
Emission Standard: Euro Ⅱ.
Maximum Speed: 95km/h.
Minimum Turning Radius: 10m.
Minimum Ground Clearance: 250mm.
Maximum Gradeability: 40%.
100 km Fuel Consumption: 28L.
Maximum Total Rated Lifting Capacity: 16 Ton.
Maximum Load Moment of base Boom: 730kN.
Lifting Height of Longest Boom: 32.5m.
Boom Full-Extending/Full-Retracting Time: 50/50s.
Boom Full-Rising/Full-Falling Time: 35/50s.
Outrigger Beam Full-Extending/Full-Retracting Time: 25/20s.
Outrigger Jack Full-Retracting/Full-Extending Time: 20/25s.
