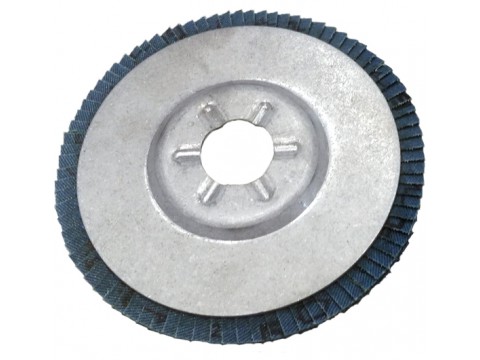

Flap disc with aluminium backing
The base of the flap disc is a kind of expendable fiber coated with resin abrasive cloth．our flap disc is made by full-automatic flap disc machine, the quality is reliable and stabilized. The abrasive cloth has ceramic,zirconia,A/O．The even distribution of cloth blades can ensure the most durable grinding effect．
Feature: 1. High elasticity
2. High tensile property and bending strength
3. The large grinding quantities
4. High efficiency
5.High cut rate, moderate to high pressure application, cool cut
Grain：ceramic,zirconia, aluminium oxide
Backing: aluminium
Backing design: T27 (flat type); T29(conical type)
Specification:
|
Dia.*bore (mm) |
Dia.*bore (inch) |
Max. operating speed |
Max. PRM |
Grit (P) |
|
100x16 |
4x5/8 |
80m/s |
15,300 |
24-600 |
|
115x22.2 |
4½/x7/8 |
80m/s |
13,300 |
24-600 |
|
125x22.2 |
5x7/8 |
80m/s |
12,200 |
24-600 |
|
150x22.2 |
6x7/8 |
80m/s |
10,200 |
24-600 |
|
180x22.2 |
7x7/8 |
80m/s |
8,500 |
24-600 |
Application: stainless steel, Titanium and titanium alloy and super alloys
◆can be customized according to customer's requirement.
Warning:ear, eye, face and body protection
