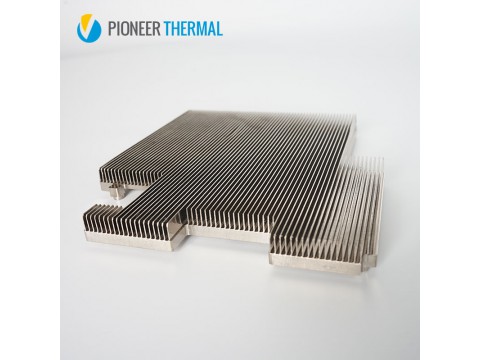

Skived Fin heat sinks can be an alternative to extruded heat sinks when looking for a fin density which can’t be achieved by extrusion technology. Skived heat sinks can be manufactured from either copper or aluminum and usually have 0.5 (0.020”) thick fins.

Technical Parameters



Place of Origin	Dongguan China	Material	Aluminum/Copper
Shape	Square	Material&Temper	Alloy 6063-T5/6061-T6/CU1100
Model number	SK-2 Skived fin	Process	Skived
Item	Heatsinks	Fin thickness	0.25 --2 mm
Finish	Anodized	Certificate	ISO9001,ISO14001
Extra process	CNC maching	size	Customized
Length	Less than 2m	OEM	Yes
Application field	Telecommunication, UPS, inverters, controllers, wind power converters, and LED lighting

Material: Copper ,Aluminum or Alloy

1 Skiving Technology .

2 Customized design.

3 High density copper heat sink. increasing the cooling area, better heat dissipation.

4 Factory price and high quality heat sink.

Skived fins are achieved by a knife tool that literally shaves fins up from an extruded aluminum or copper base. This process of slicing and then standing the fins up one at a time can create an extremely high fin-to-gap aspect ratio. The top of the fins are then cut to maintain a uniform height.  This increased surface area drastically improves the thermal performance in forced airflow environments.

Skived fin heat sinks are commonly found in the following applications:

Computers and electronic components

Telecommunication equipment

Industrial equipment and components

Lighting lamps and household appliances industry

Automotive components

15 years experience in Custom heat sinks and Skiving production .Our focus has always been to provide superior customer service in the high quality cost-effective custom heat sink area. Any custom heatsinks and standard heatsinks demand, please contact Pioneer Thermal. We'll reply you within 12 hours.
