Product Details

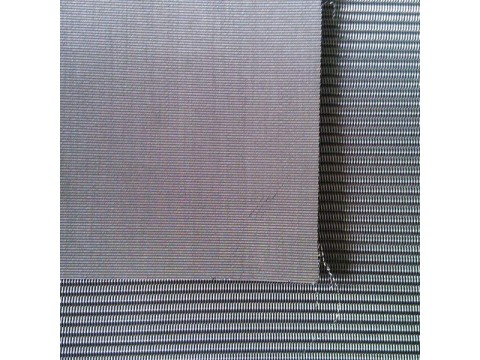

Dutch woven wire cloth or wire mesh is also known as filter wire cloth due to its popular application in filter industries.
Materials for Dutch Weave Wire Cloth: Quality stainless steel wire 304, 304L, 316, 316L, etc.
Typical Weaving Patterns: Dutch plain, Dutch twill, Dutch reverse.
Applications: Filtering and screening in airspace, oil and chemicals.
| Mesh | Wire Diameter | Weave | |||
| Warp | Shute | ||||
| in | mm | in | mm | ||
| 12x64 | 0.023 | 0.58 | 0.0165 | 0.42 | Plain Dutch |
| 14x88 | 0.019 | 0.48 | 0.012 | 0.30 | Plain Dutch |
| 14x110 | 0.016 | 0.40 | 0.011 | 0.28 | Plain Dutch |
| 24x110 | 0.014 | 0.355 | 0.010 | 0.25 | Plain Dutch |
| 30x150 | 0.009 | 0.23 | 0.007 | 0.18 | Plain Dutch |
| 40x200 | 0.007 | 0.18 | 0.0055 | 0.14 | Plain Dutch |
| 50x250 | 0.0055 | 0.14 | 0.0045 | 0.11 | Plain Dutch |
