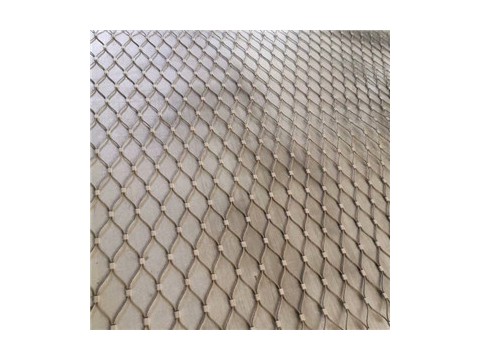

Stainless steel ferrule mesh, the stainless steel grade includes type304, type304L, type316, type316L.
The structures of the stainless steel wire cable mesh have two kinds: 7 x 7 and 7 x 19. The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".
The flexible stainless steel wire cable mesh's rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizable to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
The application of stainless steel ferrule mesh: Aviary Mesh, Bird Netting, Animal Enclosure, Zoo Mesh, Agriculture, Residential, Sports, Fall Security, Etc.
| Flexible Stainless Steel Cable Mesh (Ferrule Type) | ||||
| Cable Diameter | Mesh Opening Size | Normal Break | ||
| (W×H) | ||||
| inch | mm | inch | mm | ibs. |
| 1/8 | 3.2 | 4.75×8.23 | 120×207.8 | 1,600 |
| 1/8 | 3.2 | 4×6.9 | 102×176.7 | 1,600 |
| 1/8 | 3.2 | 3.5×6.15 | 90×156 | 1,600 |
| 1/8 | 3.2 | 3×5.2 | 76×131.6 | 1,600 |
| 1/8 | 3.2 | 2×3.46 | 51×88.3 | 1,600 |
| 3/32 | 2.4 | 4×6.9 | 102×176.7 | 920 |
| 3/32 | 2.4 | 3.55×6.15 | 90×156 | 920 |
| 3/32 | 2.4 | 3×5.2 | 76×131.6 | 920 |
| 3/32 | 2.4 | 2.4×4.16 | 60×104 | 920 |
| 3/32 | 2.4 | 2×3.46 | 51×88.3 | 920 |
| 5/64 | 2 | 3×5.2 | 76×131.6 | 676 |
| 5/64 | 2 | 2.4×4.16 | 60×104 | 676 |
| 5/64 | 2 | 2×3.46 | 51×88.3 | 676 |
| 5/64 | 2 | 1-1/2×2.6 | 38×65.8 | 676 |
| 1/16 | 1.6 | 1.2×2.08 | 76×131.6 | 480 |
| 1/16 | 1.6 | 2×3.46 | 51×88.3 | 480 |
| 1/16 | 1.6 | 1-1/2×2.6 | 38×65.8 | 480 |
| 1/16 | 1.6 | 1.2×2.08 | 30×52 | 480 |
| 1/16 | 1.6 | 1×1.73 | 25.4×44 | 480 |
| 3/64 | 1.2 | 1-1/2×2.6 | 38×65.8 | 270 |
| 3/64 | 1.2 | 1.2×2.08 | 30×52 | 270 |
| 3/64 | 1.2 | 1×1.73 | 25.4×44 | 270 |
| 3/64 | 1.2 | 4/5×1.39 | 20×34.6 | 270 |
