Product Details

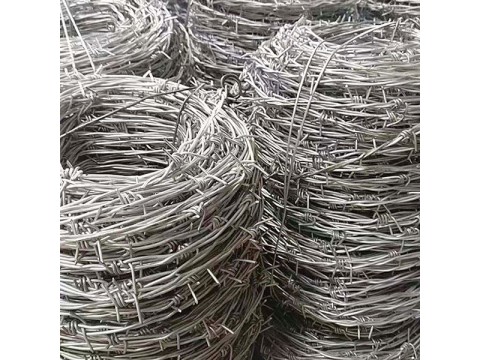

We can supply hot dipped barbed wire, razor barbed wire, pvc barbed wire.
Barbed wire is generaly used for fencing.
Packaging on rolls with weight 10kg to 25kg.
| Diameter of wire (mm) | Weight of 1m Barbed wire | Length in meters of 1kg weight barbed wire |
| 2,0 | 0,100 | 10,0 |
| 2,2 | 8,6 |
Wire Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
General Use: Barbed wire mainly serves in protecting of grass boundary, railway, highway, etc.
| Barbed Wire Specification | ||||
| Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
|
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire |
10# x 12# | 7.5-15 | 1.5-3 | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||
| PVC coated barbed wire; PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
| 1.0mm-3.5mm | 1.4mm-4.0mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
| PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. | ||||
