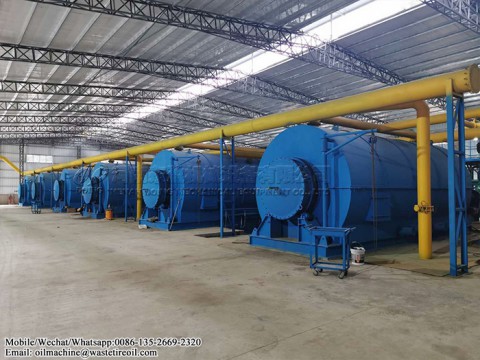

10TPD waste tire pyrolysis to oil recycling plant

Waste tire pyrolysis to oil recycling plant is the thermal decomposition of materials in the absence of oxygen. In the case of the pyrolysis of rubber tires, the rubber degrades under high temperatures and long-chain hydrocarbons in rubber are broken down into compounds with shorter carbon chains in the reactor, yielding oil, gas and carbon black.

---The Main Working Process of DOING waste tire pyrolysis to oil recycling plant---

1. Put raw materials into reactor by auto-feeder, then heat the reactor. Do not stop heating the reactor, when the temperature reaches nearly 250 degree Celsius, waste tire will be transferred to oil gas.
2. The liquid oil will be cooled by condenser from oil gas and then collected by oil tank.
3. The exhaust gas which can not be cooled in normal pressure will be recycled to heat the reactor. Smoke produced by processing the tires can achieve national emission standard through dual desulfurization and dusting removal device.
4. After you get oil, the temperature will be low, at this time, carbon black will be discharged automatically.

---The Main Advantages of DOING waste tire pyrolysis to oil recycling plant---

1. Safety
The waste tire to fuel oil pyrolysis plant business is equipped with mature safety devices, such as alarm for over temperature and pressure, auto pressure releasing system, extra gas recycling system and fire fighting device, which will guarantee 100% safety in the tire to oil recycling process.

2. Energy-saving
By the extra gas recycling system, the gas that can not be condensed will be recycled to the burning room. It can replace the fuel material to heat the reactor, which will reduce additional fuel consumption.

3. Environment friendly
In the dedusting system, three steps (water spray, ceramic ring filter, washing chamber) are used to dedust the extra gas and more than 95% of the dust would be removed. The released gas is pollution-free and can be discharged into the air directly with ISO9001:2008,CE Certificate.

4.Strict requirements for quality
IQC:Incoming quality control,main raw material;
PQC:Process quality control,All the reactor is inspection by X-ray.

---After-sales service of waste tire pyrolysis to oil recycling plant---

1. Delivery time- It will be 10-15 days after we receive the deposit.

2. Warranty-The warranty period for reactor and other parts except spare parts is 1 year.
The problem caused by wrong operation of workers shall not be responsible by our company.

3. Installation and Training-Our company will send one technician for each set of machine for guiding your installation, testing the machine and training your worker.

We DOING Company as a leading manufacturer in China has specialized in all kinds of waste recycling machinery and the supporting equipments for about 10 years, 5 years experience for domestic market, and 5 years for foreign trading. Now we have the waste tire/plastic recycling machine, waste oil recycling machine, waste cable wire recycling machine, waste aluminum plastic panel recycling machine, waste PCB recycling machine and waste home appliance recycling machine which can be provided for you.
