Introduction

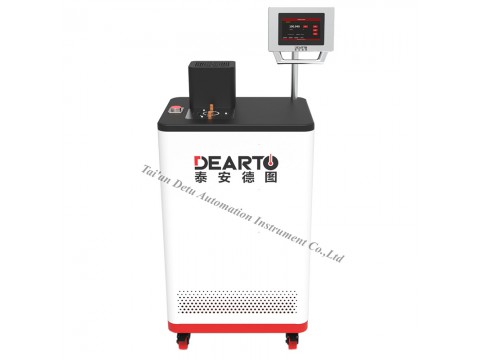

DTS-300 constant temperature oil tank is the ideal temperature constant temperature equipment for verifying and calibrating various low temperature thermocouples, industrial thermal resistance, pressure thermometers, bimetal thermometers, glass liquid thermometers and other temperature sensors. The tank body adopts the structure of lateral stirring in the design. The technical indicators of the temperature field in the working area meet the technical requirements of the temperature uniformity and temperature fluctuation of the constant temperature tank. At the same time, this series of liquid constant temperature tanks have simple operation and convenient use. Etc.
Technical Parameters
|
Product name |
Constant temperature oil tank |
Constant temperature water tank |
|
|
Model |
DTS-300 |
DTS-95 |
|
|
Temperature range |
70-300℃ |
RT+10~95℃ |
|
|
Working medium |
Silicone oil |
Soft water, antifreeze |
|
|
Uniformity of temperature field |
Level |
0.01℃ |
0.005℃ |
|
Vertical |
0.01℃ |
0.01℃ |
|
|
Temperature stability ℃ / 10min |
±0.007℃ |
±0.007℃ |
|
|
Work area size |
φ150×480 |
φ130×480 |
|
|
Volume (L) |
23 |
||
|
Power (KW) |
3 |
2 |
|
|
Dimensions (mm) |
650×600×1180 |
||
|
Weight (Kg) |
98 |
95 |
|
|
Can be customized precision thermostat. |
|||
