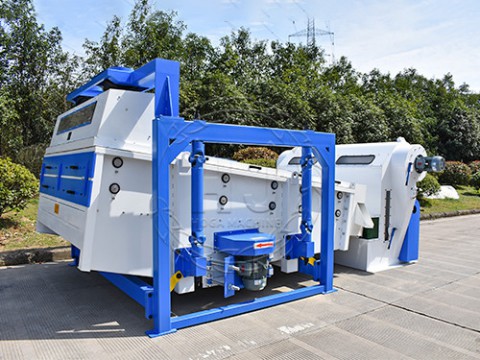

The rotary vibrating screen is mainly used for the initial cleaning of large output of rice and wheat before entering the warehouse, the cleaning of drying feed, and the processing and cleaning of the pipeline of the rice processing workshop. It can be suitable for all kinds of rice, various scenes, various requirements of rice and wheat cleaning. It is very popular used in rice production line.
The rice cleaner is widely used in food, chemical, wine and other industries. It has high overall strength, large output, good cleaning and grading effect, universal joint hanger, strong and durable, with feeding uniform material device, metal screen lattice easy to load and unload, bearing free. It works better with the wind separator.
Rice Rotary Vibrating Screen Features
1.Suitalbe for cleaning large and small materials of large output, widely used in food, chemical, wine and other industries
2. High overall strength, large output, good cleaning and grading effect
3. Universal joint boom, strong and durable
4. With feed homogenizer
5. Easy loading and unloading of metal screen
6. Combined material line realizes circular, elliptical and linear motion, providing production efficiency
7. Visual observation port to observe production situation in real time
8. Laser cutting ensures the quality and precision of sheet metal parts
9. Carbon dioxide gas shielded welding process
10. The bouncing ball moves without dead angle, eliminating all possible blocking
11. imported spherical roller bearings, high-precision processing of shaft center and bushing, use Mobil high temperature resistant lubricating oil, effectively control the temperature of the transmission structure during continuous production period, and ensure long-term stable operation.
12. Brand motors have reliable quality and stable output
Rice Rotary Vibrating Screen Technical Parameters
|
Model Specifications/ Technical Parameter |
Rice pre-cleaning capacity（t/h） （Screen size5*20mm） |
Rice pre-cleaning capacity（t/h） （Screen size 4*16mm） |
Screen area（㎡） | Rotating speed（r/min） | Power（KW） |
Weight (KG） |
Oversize(mm) |
| HZXZ150*250-2L | 10-30 | 5-25 | 3.75 | 320 | 3 | 2850 | 2988*2205*2105 |
| HZXZ150*250-3L | 10-30 | 5-25 | 3.75 | 320 | 3 | 2950 | 2988*2205*2105 |
| HZXZ200*250-2L | 15-40 | 8-30 | 5 | 320 | 4 | 3100 | 2988*2705*2105 |
| HZXZ200*250-3L | 15-40 | 8-30 | 5 | 320 | 4 | 3250 | 2988*2705*2105 |
| HZXZ200*300-2L | 20-50 | 10-40 | 6 | 320 | 4 | 3450 | 3500*2800*2152 |
| HZXZ200*300-3L | 20-50 | 10-40 | 6 | 320 | 4 | 3600 | 3500*2800*2152 |
| HZXZ200*360-2L | 25-60 | 15-50 | 7.2 | 320 | 4 | 3800 | 4100*2800*2152 |
| HZXZ200*360-3L | 25-60 | 15-50 | 7.2 | 320 | 4 | 4050 |
4100*2800*2152 |
