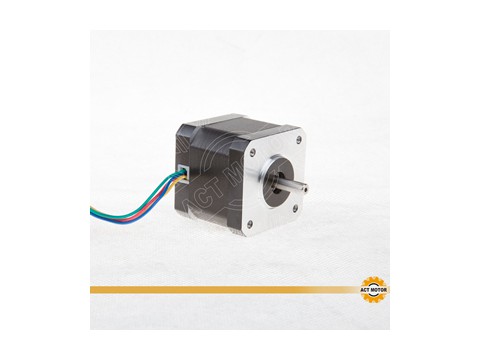

Two-Phase, Four-Phase Hybrid Stepper Motor 17HS4410-04

Click image to view original image

Brand:	ACT
Body length：	40mm
Rated voltage：	4.2V
Price:	8.70USD/P
Min.Order:	1 P
Supply	4000000 P
Delivery:	Shipment within 3 days since the date of payment
Address:	China
Valid until:	Never Expire
Updated on:	2020-10-12 09:22
Hits:	120761

Company Detail

Details

类型：17HS4410-04
阶段：2

机体长度：40mm
额定电压：4.2V
电阻（20℃）：4.2±10％Ω/相
保持扭矩：≥0.5N.cm
转子扭矩：54g.c㎡
步距角：1.8°
额定电流：DC 1.0A /相
电感：8.4±20％mH /相
绝缘等级：B级
