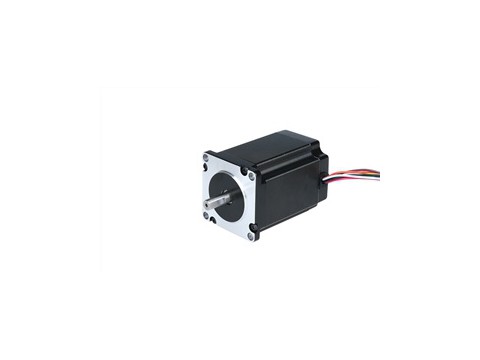

Two-Phase, Four-Phase Hybrid Stepper Motor 23HS8440-23

Click image to view original image

Brand:	ACT
Body length：	76mm
Rated voltage：	2.4V
Price:	17.50USD/P
Min.Order:	1 P
Supply	4000000 P
Delivery:	Shipment within 3 days since the date of payment
Address:	China
Valid until:	Never Expire
Updated on:	2020-10-12 09:22
Hits:	111961

Company Detail

Details

类型：23HS8440-23
相：2

机体长度：76mm
额定电压：2.4V
电阻（20℃）：0.6±10％Ω/相
保持扭矩：≥1.9N.cm
转子扭矩：480g.c㎡
步距角：1.8°
额定电流：DC 4.0A /相
电感：1.8±20％mH /相
绝缘等级：B级
