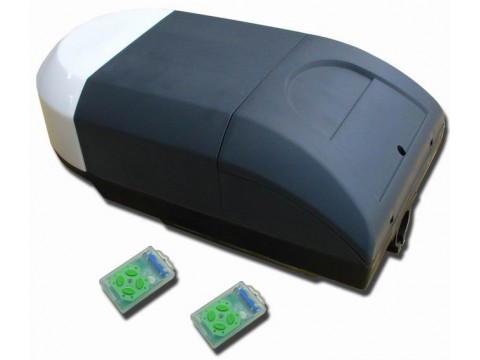

FB120 F200 Garage Door Opener Sectional
Door Operator roller tilt door
1. Digital, humanized and
intelligentized design, top of line operator contains an intelligent
microprocessor control
2. Modern and futurist look
features soft and smooth lines
3. Every detail and shape has been
carefully and passionately designed
4. Control unit regulates all the
necessary functions such as automatic memory, automatic lighting control,
automatic close, automatic reverse and photocell protection, extremely quiet
and smooth operation
5. Soft start and soft stop
6. Self-locking in closed position
7. Manual release device in case
of power failure
8. Electric limit switch remembers
door position
9. Easy to set limit position
10. Auto-reverse in closing and
auto-stop in opening in the event of obstruction
11. Automatically close the door
after 1-9 minutes (adjustable)
12. Wiring terminals for button
switch, infrared photocell, 24V DC power output
13. Courtesy light will turns on in
using and turns off after 3 minutes
14. RF hopping code technology
prevents your remote code being accessible to others, one remote
transmitter can separately control max 3 garage doors
15. Hopping code remote control
with max. 25 pieces transmitters
Model
FB120
FB200
Power supply
220 x (1 ±10%)V/AC, 50Hz
220 x (1 ±10%)V/AC, 50Hz
Motor
Permanent magnet DC motor
Permanent magnet DC motor
Motor power
24V, ≥80W
24V, ≥100W
Open and close force
600N
1200N
Lifting height
2.2-3.2m
2.2-3.2m
Auto-close time
1-9 minute adjustable
1-9 minute adjustable
Weight
7kg
8kg
Dimensions
495x240x175
495x240x175
Opening speed
5.77m/minute
5.77m/min
Cycles per hour
25
25
Max door size
10m2
14m2
Ambient temperature
-25 to +45 ºC
-25 to +45 ºC
Radio frequency
433.92MHz
433.92MHz
Transmitter type
Rolling code
Rolling code
Remote distance
≥30m
≥30m
Transmitter battery
27A/12V
27A/12V
Bulb
220-240V/25 watt
220-240V/25 watt
***************************************************************************
