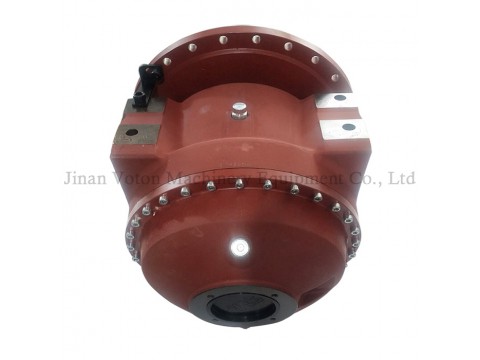

PMB-Solid and trustworthy reducer for concrete mixer truck。
PMP is a world-class mixer truck reducer manufacturer. Our mission is to design, develop and manufacture the most efficient, reliable and quietest reducer for each specific mixing requirement.
Since its establishment in 1991, PMP has been providing PMB series reducers for leading European mixer truck manufacturers. Today PMP is a trustworthy and dynamic global partner.
The winning factors behind our success are: simple and sturdy design, continuous selection of the best materials and attention to every detail.
These factors make PMB continue to exceed customer expectations for product durability, high energy efficiency and applicability.
PMB reducer is widely used in mixer trucks and trailers: 16 cubic steel tank capacity can be used. PMP also has a solution to supply a complete set of hydraulic systems for mixer trucks, including reducers, hydraulic motors, hydraulic pumps, water pumps and other devices. In addition, PMP also introduced a reversible reducer: another flexible option for right-angle gear transmissions.
Because it does not use any bevel gears, the reversible reducer has the characteristics of compact size, simpler and higher efficiency. PMP has always focused on the production of this specific product: our dedicated assembly line guarantees a stable quality level, flexible production capacity and 100% final inspection of the reducer.
PMB linear reducer
| Model | PMB 6 | PMB 6.5 | PMB 7.1 | PMB 7.5 | PMB 7.8 | PMB 8 |
| Output torque [Nm] | 60.000 | 65.000 | 70.000 | 75.000 | 80.000 | 85.000 |
| Max input speed [rpm] | 2.500 | 2.500 | 2.500 | 2.500 | 2.500 | 2.500 |
| Speed ratio i: | 100 | 120,3 | 120 or 130 | 130 | 130 or 140 | 140 or 150 |
| Weight [kg] | 270 | 290 | 305 | 310 | 345 | 367 |
Max steel tank capacity
| 8m³ | 10m³ | 12m³ | 14m³ | 16m³ | 18m³ | |
| PMB 6 |
|
|||||
| PMB 6.5 |
|
|||||
| PMB 7.1 |
|
|||||
| PMB 7.5 |
|
|||||
| PMB 7.8 |
|
|||||
| PMB 8 |
|
