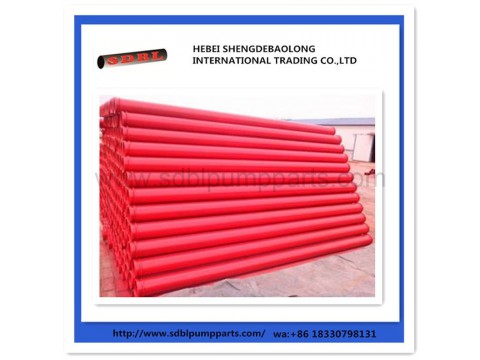

Concrete Pump parts Seamless Pipe

Concrete Pump parts Seamless Pipe

Type: Concrete Pump, Seamless Pipe, Condition: New, Size: DN125, Length: 3m/6m/9m/12m, Service Life: 30000cbm, Application: Stationary Pump/Mobile Pump

SDBL Concrete Pump parts Seamless Pipe

1.product description

Hebei shengdebaolong International Trading Co.,ltd supply you many kinds of concrete pump seamless pipe :

(1)Type: st52 pipe, 20#pipe, harden pipe, double wall pipe(double layer pipe), welded pipe.

(2)Service life: usually, st52 and 20# seamless pipe is 15000cbm-20000cbm, harden pipe is 25000cbm-40000cbm(according to the material, usually this kind of harden pipe is 45Mn, 55Mn, NM55), double layers and twin wall pipe is 50000cbm-80000cbm.

(3)Thickness: 4.5mm, 5.0mm, 5.5mm, 7.0mm, 8.0mm and so on !

(4)Length: 1m, 2m, 3m, ect or as client's requirement.

(5)Material: 20# pipe and st52 seamless pipe are 16Mn and 37Mn5. Harden pipe is 45Mn2, 55Mn, NM55 material. Double wall pipe is high chromium Alloy+Q235 material.

(6)Technoly: this kind of 20#seamless pipe technology is easy, first, we purchased the raw material pipe from An'gang enterprise, then we cut the pipe as the client's required length, after this, we weld the 148mm sk flange, then queching the pipe sand blasting solving, welding the flange, painting and then over. the pipe performance is stable and good, so after working, quality is best !

(7)Manufacture process: Shot blasting, derusting, cutting, welding flanges, spray painting, packing and transffering.

(8)Flange collar: high pressure and low pressure flange, also HD flange collar, like SK/ZX/FM/HD/WEAR RESISTENT flange connection.
