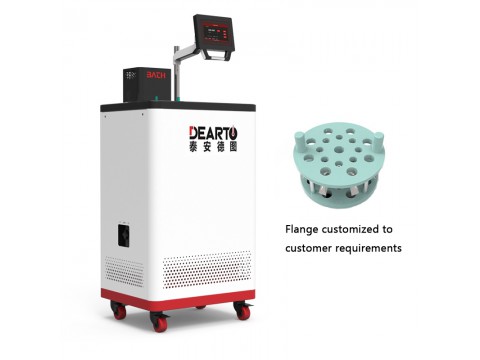

DTS-CT intelligent precision thermostatic bath is a new type of intelligent thermostat introduced by our company. It adopts touch screen control and operation, completely intelligent man-machine interface, and the control is more convenient, simple and practical. A dual-cavity side stirring technology is used in the structure to make the constant temperature bath reach the ideal uniform temperature field through intelligent PID adjustment, which can meet the verification / calibration work of various temperature sensors such as low temperature thermocouples, industrial thermal resistors, pressure thermometers, bimetallic thermometers, glass liquid thermometers, etc.
Technical parameters :
|
Product name |
Refrigeration thermostat |
|||||||
|
Model |
DTS-CT 01E |
DTS-CT10E |
DTS-CT 30E |
DTS-CT40E |
DTS-CT60E |
DTS-CT80E |
||
|
Temperature range |
0~100℃ |
-10~100℃ |
-30~100℃ |
-40~100℃ |
-60~100℃ |
-80~100℃ |
||
|
Working medium |
Antifreeze |
anhydrous ethanol |
||||||
|
Uniformity of horizontal temperature field |
≤0.01℃ |
0.010℃ |
0.010℃ |
|||||
|
Uniformity of vertical temperature field |
≤0.01℃ |
0.010℃ |
0.010℃ |
|||||
|
Temperature fluctuation :℃/10 min |
≤0.01℃ |
0.010℃ |
0.010℃ |
|||||
|
Work area dimensions |
φ130×480 |
|||||||
|
Volume :(L) |
18 |
|||||||
|
Maximum power :(KW) |
2 |
2.8 |
3.5 |
3.5 |
||||
|
Dimensions :(mm) |
660(L)×540(W)×1120(H) |
700*590*1120 |
||||||
|
Quality :(Kg) |
120 |
150 |
||||||
