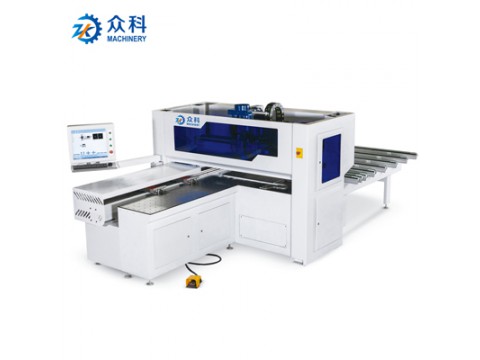

Six-sided drilling machine is mainly used for horizontal,vertical drilling and slotting in various types of artificial panels,
with small power spindle for slotting, solid wood panels, etc. Simple operation, fast drilling processing speed, with small
spindle slotting, it is suitable for processing all kinds of modular cabinet-type furniture.
Six-side drilling machine can fix the workpiece in one clamping and multi-face machining. It simplifies the overall machining process of the workpiece, simplifies the process, improves the machining efficiency.
It has also completely solved the problem that the complicated workpiece needs the error caused by multiple clamping, which reduces the work difference and improves the machining precision.
with small power spindle for slotting, solid wood panels, etc. Simple operation, fast drilling processing speed, with small
spindle slotting, it is suitable for processing all kinds of modular cabinet-type furniture.
Six-side drilling machine can fix the workpiece in one clamping and multi-face machining. It simplifies the overall machining process of the workpiece, simplifies the process, improves the machining efficiency.
It has also completely solved the problem that the complicated workpiece needs the error caused by multiple clamping, which reduces the work difference and improves the machining precision.
Size Information
|
SIZE OF SIX SIDES DRILLING MACHINE
|
||
|
|
X aixs
|
130m/min
|
|
Y aixs
|
85m/min
|
|
|
A aixs
|
60m/min
|
|
|
Z aixs
|
35m/min
|
|
|
|
Upper drill center
|
12pcs (Vertical drilling) + 12pcs( Horizontal drilling)
|
|
Lower drill center
|
16pcs(Vertical drilling)
|
|
|
Drilling unit motor power
|
2.2kw（upper drilling unit）+2.2KW（lower drilling unit） 4000rpm
|
|
|
Boring and Milling spindle
|
Spindle form
|
Er32
|
|
Drill bit diameter
|
φ10mm
|
|
|
Spindle motor power
|
3.5kw（upper spindle）+2.2KW（lower
spindle） |
|
|
Spindle speed
|
18000rpm
|
|
|
|
Min panel width
|
50mm
|
|
Max panel width
|
1200mm
|
|
|
Min panel length
|
250mm
|
|
|
Max panel thickness
|
50mm
|
|
|
Worktable height
|
920mm
|
|
|
|
||
