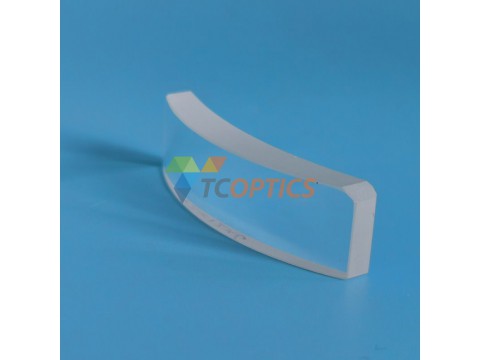

A cylindrical lens is a lens which focuses light into a line instead of a point, as a spherical lens would. The curved face or faces of a cylindrical lens are sections of a cylinder, and focus the image passing through it into a line parallel to the intersection of the surface of the lens and a plane tangent to it.
Material: Optical glass, Fused silica, CaF2, MgF2, Sapphire, ZnSe, ZnS
Diameter: 0.5 to 350 mm
Diameter Tolerance: +0/-0.02 mm
Thickness Tolerance: ±0.01 mm
Surface Quality: 10-5
Surface Figure: λ/10
Centration: 1 minute or 30 Second
Coating: Uncoated, AR and HR.
