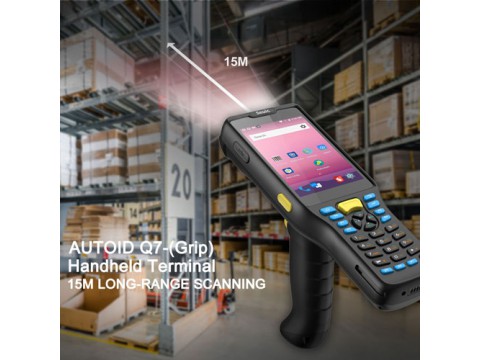

AUTOID Q7-(Grip)
Focus on Supply Chain Warehousing
AUTOID Q7-(Grip) is an industrial-grade handheld terminal designed for professional/stereoscopic warehousing. It supports long-distance scanning to provide users with professional warehousing capture.
-----------------------------------------------------------
ConTACT US
Website:en.seuic.com
Mail:marketing@seuic.com
Dimensions
203(H)×72(W)×35(T)mm
Weight
4G Model: 495g
WIFI Model: 490g
Display
4.0 inch, 800(H)×480(W) (WVGA)
Touch Panel
Multi-touch panel, gloves and wet hands supported
Power
Detachable 3.7V removable Li-ion battery,
Rated capactity: 5200mAh
Built in li-ion backup battery
Standard Micro USB, intelligent identification of PC and special charger; support Charging Dock
Expansion Slot
Micro SD Card, 32GB SDHC compatible
Notification
Sound, Vibrator, LED indicator
Keypad
31 keys, LED(buttons with backlight)
Voice & Audio
Built-in loudspeaker, built-in microphone
Operating Temp.
-20 ºC~+50 ºC
Storage Temp.
-40ºC to + 60ºC (Battery included)
-40ºC to + 70ºC (Battery excluded)
Humidity
5% to 95% RH non-condensing
Drop Specification
Multiple 1.8m drops to marble across the operating temperature range
Tumble Specification
1,000 1.64 ft./0.5 m tumbles (2,000 impacts)
Sealing
IP65 per IEC sealing specifications
ESD
±15kV Air discharge, ±8kV direct discharge
CPU
Cortex™-A53 4-core 1.4GHz/Cortex™-A53 8-core 1.8GHz
Operating System
Android 7.1/Android 9.0
Memory
2GB RAM+16GB ROM/3GB RAM+16GB ROM
Operating System
Android 7.1/Android 9.0
Language
Java
Tool
Eclipse / Android Studio
Scan Engine
SE965: 1D standard range laser scanner
X3/X3 MR: Standard/Middle range 1D/2D imaging engine
N6603/N6703: Standard range 1D/2D imaging engine
SE4850: Extended range 1D/2D imaging engine
Camera
Maximum Resolution: 2592*1944(taking photo), 1080P 30fps (taking movie)
Photo Function: Auto-focus
Pixel: 5mega
NFC
Support ISO15693, ISO14443A/B(without encryption protocol), ISO14443A tag with encryption protocol(Mifare one S50,S70 and its compatible cards); Support NFC protocol and ID certificates.
WLAN
IEEE 802.11a/b/g/n/ac(2.4G/5G dual-frequency WIFI)
WWAN
2G: 850/900/1800/1900MHz
3G: B1/B5/B8/B34/B39/BC0
4G: B1/B3/B5/B7/B8/B38/B39/B40/B41
Bluetooth
Bluetooth 4.2 (Dual mode, Support BLE)
GNSS
GPS/AGPS, GLONASS, Beidou, internal antenna
Platforming
SEUIC MDM, Standard Android SDK, Wavelink/SOTI for Android
