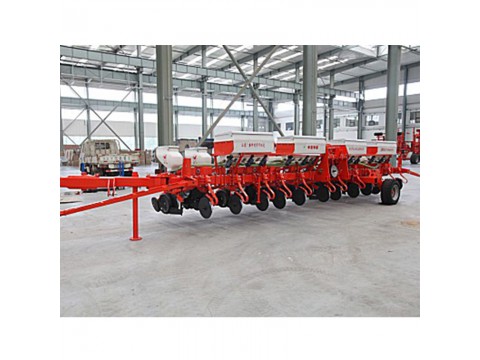

2BFQ-12 Pneumatic Air-Suction Precision Seeder seeding machine corn planter soybean planter Agricultural Seeder supplier
Pneumatic Air-Suction Precision Seeder Description:
2BFQ-6 \ 2BFQ-8 \ 2BFQ-12 Pneumatic Air-Suction Precision Seeder is a seeder specially developed by our company for large farms. This pneumatic air-suction precision seeder can precisely seed corn, beans, rape and other crops. The precision seeder adopts the design of enlarged seed fertilizer box, which can reduce the number of times of adding seed fertilizer and improve work efficiency. The seeder uses a high-tech electronic monitoring system to prevent the lack of seedlings and improve the quality of seeding. The machine is equipped with a longitudinal traction device, which can easily transfer plots. The longitudinal transport wheel adopts spring to assist the lifting and landing, and the operation is flexible. The device's seed opener is equipped with a depth-limiting device, which greatly improves the consistency and stability of the broadcast depth. The single unit of this machine adopts a four-link structure, which reduces the requirements for leveling and leveling. The machine adopts screw adjustment for depth limitation and cracking, which is convenient and flexible. The machine is equipped with 14 kinds of speed ratio gearbox, which can adjust the plant spacing conveniently. The track marker adopts automatic reversing hydraulic valve type hydraulic structure, which is easy to operate. The precision seeder can be completed at one time, and multiple operations such as trenching, fertilization, seeding, soil covering, and cracking have been improved to improve work efficiency.
Zhongyou Fortune-Seeder Technical parameters
|
1 |
Spacing (cm) |
50-60 |
|
2 |
Planting rows |
12 |
|
3 |
Seed box volume (L) |
38×12 |
|
4 |
Fertilizer tank volume (L) |
170×4 |
|
5 |
Fan input speed (r/min) |
540 |
|
6 |
Weight (kG) |
2300 |
|
7 |
Dimensions (cm) |
800×300×253(470) |
|
10 |
Speed of work (km/h) |
2.16-3.84 |
|
12 |
Seeding device form |
Vertical disc suction |
|
13 |
Fan impeller diameter (cm) |
400 |
|
14 |
Pure work hour productivity (hm2/h) |
2.16-3.84 |
|
15 |
Plant distance range (cm) |
3-44 |
|
16 |
Ditch opener form |
Double garden disc |
|
18 |
Matched power (kW/hp) |
95.5-161.8 /130-180 |
Agricultural Seeder is one of our main product. This pneumatic air-suction precision seeder can precisely seed corn, beans, rape and other crops, which is also easy to operate.
