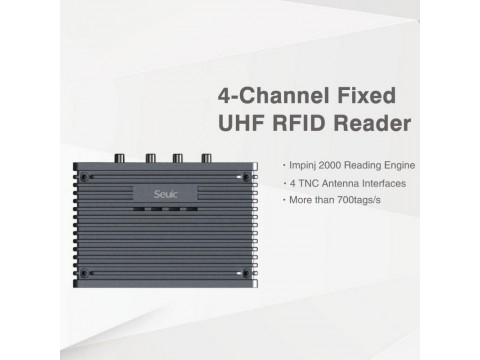

AUTOID UF3 is a 4-Channel UHF reader with built-in lmpinj R2000 engine. It integrates RS232, TCP/IP and other protocol interfaces and various specifications of antennas can be matched. Combined with proprietary and efficient signal processing algorithms, it achieves fast tags reading and can be widely used in logistics, asset management, smart stores, smart cities,etc.
| Dimensions | 230(L)×156(W)×30(T)mm |
| Material | Aluminium alloy |
| Input Voltage | DC 9V - 12V |
| Comm Interface |
RS232, RS485, RJ45（TCP/IP） Optional(WiFi) |
| GPIO | 2 GPIO input and 2 GPIO output (isolated by optical coupler) |
| Status Indication | Power supply indicator, RFID status indicator, Buzzer |
| Cooling Mode | Air cooling |
| Work Current | Maximum 1.2A |
| Operating Temp. | 20 ºC~+60 ºC |
| Storage Temp. | -25ºC to +80ºC |
| Humidity | 5% to 95% RH non-condensing |
| Sealing | IP54 per IEC sealing specifications |
| Engine | Impinj Indy R2000 |
| Frequency | 860MHz-960MHz (varies from different countries and regions) |
| Protocol | EPC C1 GEN2/ISO18000-6C/6B |
| Output Power | 5dBm to 33dBm adjustable |
| Output Power Precision | +/- 1dBm |
| POE | Supported |
| Reading Rate | >700tags/s |
| Antenna Detector | Supported |
| Trigger Mode | Supported |
| Antenna Port | TNC*4 |
