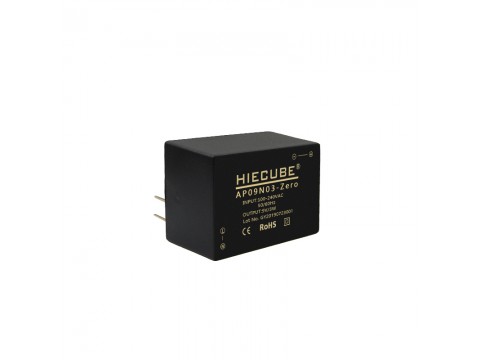

Click image to view original image
Meet RoHS, CE requirements
Ultra thin, ultra small
All voltage inputs (AC: 85 ~ 265V, DC: 100 ~ 370v)
High efficiency, high power density,
Low ripple and noise
Output overload, short circuit protection and redundancy protection
Low power consumption, environmental protection, no-load loss < 0.3w
The product meets the requirements of EMC and security testing in advance
Three year warranty perio
environment condition
Operating temperature - 40 - + 70 ° C
Storage temperature - 40 - + 70 ° C
Relative humidity 5-95%
Cooling mode: natural cooling
Electrical characteristics
Input characteristics (tested at room temperature 25 ° C)
Rated input voltage 100-240 VAC
Input voltage range 85-265 VAC
Input current < 40mA
Start up < 200ms
Long term reliability MTBF ≥ 300000 H
Voltage regulation rate ± 1%
Load regulation rate ± 1%
Output ripple and noise (mvp-p) < 80
