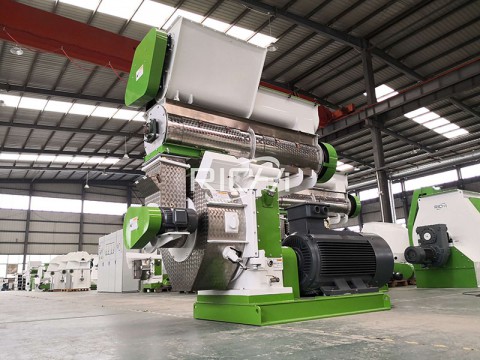

Cattle feed pellet machine

1. Why use pellet feed to feed cattle?

Feeding cattle with granular concentrated feed is beneficial to feed processing plants, fattening cattle farms and fattening cattle.

(1) For feed factory

① The granular concentrated feed is small in size, which is beneficial to transportation and can reduce transportation costs;

②During the pressing process, the structure of some substances in the feed has changed, which improves the utilization of some nutrients in the feed;

③The granular concentrated feed is convenient for packaging and storage;

④The granular concentrate reduces the infection of toxic and harmful bacteria;

⑤The granular concentrated feed guarantees the high quality of feed products to a greater extent;

⑥ It is convenient to add trace elements, vitamins, health care agents, and antioxidants in the feed, and it is convenient to change the feed formula;

⑦Reduce the pollution of dust to the environment.

(2) For beef cattle breeding farm

①The granular concentrated feed is convenient for transportation, storage and preservation;

②Pelletized concentrated feed reduces the loss of feed;

③Pelletized concentrate feed is beneficial to the distribution of feed;

④Improved the sanitary conditions of the cattle farm.

(3) For fattening cattle

① Fattening cattle like food and increase feed intake;

② Eliminate the faults of cattle picky feed;

③ Improve the digestibility and conversion rate of feed;

④Improved the speed of weight gain.

2. High quality cattle feed pellet making machine Features:

（1）Gear directly-connecting driving is adopted for high efficiency;

（2）Full stainless steel feeder; variable pitch anti-bridging structure; imported FC control;

（3）Full stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;

（4）Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;

（5）Gearbox and driving holes' accuracy are guaranteed by specialized casting supplier ;

（6）The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;

（7）2 pc quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;

（8）Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;

（9）The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.

3. Cow feed pellet machine models

Model	Capacity(TPH)	Main Motor Power(kw)	Feeder Motor Power(kw)	Conditioner Power(kw)	Dia.of Ring Die(mm)	Final Pellet(mm)
SZLH250	1-2	22	0.75	1.5	250	2-12
SZLH320	3-4	37	1.5	2.2	320	2-12
SZLH350	5-7	55	1.5	3	350	2-12
SZLH420	8-12	110	1.5	7.5	420	2-12
SZLH508	10-18	160	2.2	11	508	2-12
SZLH558	15-25	180/200	2.2	11	558	2-12
SZLH678	20-30	220/250	2.2	11	678	2-12
SZLH768	25-40	280/315	2.2	11	768	2-12
SZLH858	25-42	280/315	2.2	15	858	2-18

4. Customized Cattle feed pellets

With the most mature technology, the pellets made by our feed pellet making machine have such features:

（1） Good hardness and durability

（2）Easy to digest for cattles

（3）The diameter of finished pellet can be Φ1.5, Φ2, Φ3, Φ4, Φ4.5, Φ5, Φ6, Φ8, Φ10, Φ12mm, etc(ranges from 1-12mm). The length is 2-18cm. It can be customized according to different requirement.

The pellets can be as feed stuff for many kinds of animals like chicken, duck, goose, cow, cattle, horse,sheep, pig, rabbit, fish, shrimp, and so on.
