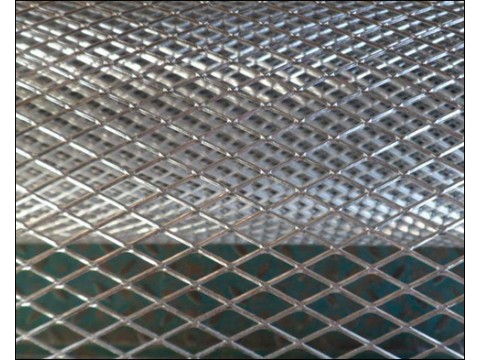

Diamond Mesh Lath

Diamond Mesh Lath is a kind of Expanded metal Lathe, manufactured from steel sheets, slit and expanded to small diamond openings. Mostly supplied in flat rectangular sheets of 0.6m x 2.5m. Galvanized Lath of Diamond Mesh Sheet is used in structure reinforcement to hold plaster on roof, wall and ceilings, suitable for masonry surface stucco and plastering uses.

Diamond metal lathing is ideal for fireproofing structure construction, with:
The uniform diamond opening and large open area provide a superior substrate for bonding of cementitious fireproof materials;
Rigid and flat sheets, bendable for box and contour design;
Square ends and smooth parallel edges on the sides for fast and easy handling;
Minimum stress cracks by maintaining consistent material depth.

Material:
Galvanized steel
Zinc coating standard:
Galvanized Steel -BS EN 10346:2009
ASTM A 653/A 653M

Popular sheet size: 600 mm width x 2500mm length ( 24 inch width x 98 inch length).

EXPORT TYPES

1/4" Galvanized Diamond Mesh Lathe, 27inch x 97 inch, 2.5 lbs
Self fur dimpled Diamond metal Lath for wall stucco keying
V grooved Expanded metal Lath

Diamond Hole Expanded Mesh Strip Lath, in 6" for doors and windows corner reinforcement

1/4" Galvanized Diamond Mesh Lathe

Sheet size: 27" x 96"
Specification:
3.50 Pounds/Square Yard
Materials: Hot dipped galvanized steel sheets.
