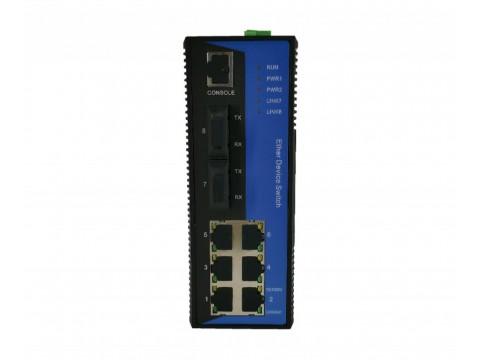

UPCOM IES308-2F is a rugged industrial grade, Din-Rail, layer2, Managed Ethernet switch which supports 6-port 10/100M base-T(X) +2-port 100base-FX. It provided some kinds of advanced network managed function, such as: MW-Ring redundancy technology (failure recovery time<20ms), VLAN, multicast, Quality of Service, Speed control, port mirroring, fault alarm and firmware remote update, also support CLI, WEB, Telnet, SNMP management, provide a user-friendly web console interface for easy configuration.
IES308-2F adopts standard Industrial design, IP40 protection, aluminum alloy shell, support Din-rail or wall installation, fanless design, EMC level 4 protection, dual power DC12-48V or single AC/DC220V optional, can satisfied the requirement of various industrial applications such as Industrial automation, smart grid, rail transportation industry, safely city, and new energy, etc.
Support 6-port 10/100M RJ45 + 2-port 100M FX;
Support static multicast filtering, IGMP Snooping;
Support MW-Ring redundancy technique (failure recovery time <20ms);
Support STP/RSTP/MSTP;
Support managed function such as VLAN, QoS, Trunking, and port mirroring;
Support CLI, WEB, Telnet, SNMP management;
Support RMON and private MIB table;
Support firmware upgrade online;
Support relay alarm output;
Support indicator status display;
Support IP40 protection, aluminum alloy shell, fanless design;
Support Broadcast storm suppression;
Support dual DC12-48V or single AC/DC 220V power supply;
Power supply input support anti-reverse protection and non-polarity;
Support over Voltage, over current, EMC protection;
Support -40~75°C wide operating temperature range;
DIN-Rail or wall Installation;
Warranty:5years
