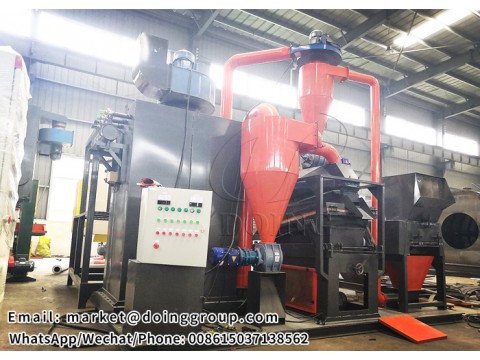

Copper wire recycling machine is an environmental protection type machinery. Copper, and plastics are separated from the broken wires processed by the machine.The raw materials processed by the copper wire granulator machine include copper wire, telephone wire, communication wire, control board wire, copper plastic composite wire, aluminum plastic wire, wire sheath, etc.
The working procedure of the copper wire recycling machine consists of four steps.
1. Shredding.
Putting the waste cables and wires into the machine for shredding.
2. Crushing.
Making the broken waste cables and wires into the smaller particles.
3. Air separation.
based on the principle of air suspension, the specific gravity of particles is different, putting the broken wasted wires into the machine to separate the plastics and crude copper.The lower part of the air flow separator is equipped with a fan. After the materials enter the air flow separator, the plastic particles with smaller density are blown up by the wind and move to the plastic end of the air flow separator under the vibration of the air flow separator. Due to the high density of copper particles, which can not be blown by the wind, these copper meters move to the copper outlet of the air separator under the action of vibration.
4. Electrostatic separation.
Because copper and plastic are very small, the specific gravity is not different, and they can not be separated by specific gravity. Therefore, according to their conductivity, we use the electrostatic separator to attain the goal of separating.
The copper cable wire recycling machine has a variety of advantages.
1.It has an integrated structure design, so it has less area occupation.
2.PLC control system is adopted, it has the advantage of high automation and simple operation.
3.It adopts the air separation equipment to attain the effect of precise adjustment and control of sorting.
4.It has a pulse dust elimination system, and its operation is completely closed to avoid the dust leakage.
5.It was equipped with electrostatic cleaning equipment to reach the goal of 99.9% rate of metal recycling.So it also has a high profit.
